Quick Answer

The most critical mistake when winterizing a sprinkler system is not completely removing all water from the lines, leading to frozen pipes, cracked components, and costly damage. Proper winterization involves shutting off the water supply, opening all drain valves, and, for most systems, using an air compressor for a 'blow-out' method to ensure every drop of water is expelled before a hard freeze. This prevents ice expansion from rupturing pipes, sprinkler heads, and backflow preventers, saving homeowners thousands in repair costs.

The Problem

As temperatures drop and winter looms, an often-overlooked chore can turn into a homeowner's nightmare: an improperly winterized sprinkler system. Water, unlike most liquids, expands as it freezes. If even a small amount of water remains in your irrigation pipes, sprinkler heads, or backflow preventer when temperatures consistently fall below 32°F (0°C), that expanding ice will exert immense pressure—often exceeding 2,000 pounds per square inch (psi). This pressure doesn't just push water; it relentlessly attacks the internal structure of your system. PVC pipes can crack lengthwise, poly pipes can burst, and delicate internal components of sprinkler heads, valves, and especially backflow preventers can shatter. The result? A spring awakening filled with geysers, leaks, and a repair bill that can easily climb into the hundreds or even thousands of dollars, not to mention the potential damage to your landscaping from uncontrolled water flow. Many homeowners mistakenly believe simply shutting off the water source is enough, or they rely on gravity drains alone, which often leaves pockets of water in low spots or horizontal lines. This single, preventable oversight is the most common cause of catastrophic sprinkler system damage each winter.

How It Works

An irrigation system is essentially a network of pipes, valves, and sprinkler heads designed to deliver water to your lawn and garden. Water enters the system from your main household supply, typically controlled by a master valve or stop-and-waste valve. Before the water enters the main distribution lines, it often passes through a backflow preventer. This crucial device stops contaminated irrigation water from flowing back into your potable drinking water supply. From the backflow preventer, the water travels through a main line to various zone valves, which are electronically controlled to open and close, directing water to specific areas of your yard. Each zone has a network of lateral lines connected to individual sprinkler heads, which pop up when pressurized and retract when the water is off. Some systems also include automatic drain valves at low points, designed to passively release water when the pressure drops, but these are often insufficient for complete drainage. The problem in winter stems from the fact that these lines and components, particularly those underground or exposed, are designed to hold water under pressure, not to withstand the immense expansion forces of freezing water. Water trapped in the tiny orifices of a sprinkler head, the complex internal chambers of a backflow preventer, or a horizontal section of pipe will inevitably freeze and cause damage if not removed.

Step-by-Step Fix

Before you begin, check your local forecast for the first hard freeze (several hours below 28°F). Aim to winterize at least a week before that date.

1. Identify Your System Type – Know your method

• Manual Drain: If your system has manual drain valves at low points, usually identified by a small, threaded cap or levervalve. This method is often insufficient on its own for full drainage.
• Automatic Drain: Some newer systems have automatic drain valves built into the lowest points of the main and lateral lines. These open when pressure drops but can still leave residual water.
• Blow-Out: The most common and recommended method for almost all systems, especially those with no manual drains or complex layouts. Requires an air compressor.

2. Shut Off the Main Water Supply – Cut the flow

• Locate your main irrigation shut-off valve. This is typically near your water meter or where the irrigation line branches off from your house's main water supply. It might be a gate valve, ball valve, or stop-and-waste valve.
• Turn the valve to the 'off' position. For a gate valve, turn clockwise until tight. For a ball valve, the handle will be perpendicular to the pipe. If it's a stop-and-waste valve, turn it off and ensure the waste port is open if present.
• DO NOT SKIP THIS STEP. Failing to shut off the water supply before attempting other steps can lead to flooding or damage.

3. Drain the Backflow Preventer – Protect the critical component

• Locate your backflow preventer. This is usually above ground, often near your main shut-off valve.
• Turn the two test cock valves (small, usually slotted or square-stemmed valves) on the backflow preventer so their slots are perpendicular to the main pipe. This opens them.
• Open the two main shut-off valves on the backflow preventer (these are separate from your irrigation system's main shut-off). Turn the handles so they are 45 degrees relative to the pipe. This allows water to drain but prevents accumulation. Leaving them fully open can allow rain/snow to enter and refreeze.
• Safety Note: Wear eye protection when opening these valves, as residual pressure can cause a spray.

4. Open All Manual Drain Valves (If Applicable) – Let gravity help

• If your system has manual drain valves, locate them (often at the lowest points of each zone's main line or manifold).
• Unscrew their caps or turn their levers to fully open them. Allow water to drain until no more flows out.
• Even if using the blow-out method, performing this step first can reduce the amount of water the compressor needs to expel.

5. Prepare for the Blow-Out (Most Systems) – Connect the compressor

• Tools: Air compressor (minimum 5-7 CFM at 40-50 PSI for smaller systems, larger for bigger systems), appropriate adapter for your blow-out port (usually 1/4 or 3/4 inch threaded).
• Locate the blow-out port on your irrigation system. This is typically after the backflow preventer or at a dedicated connection point after the main shut-off valve.

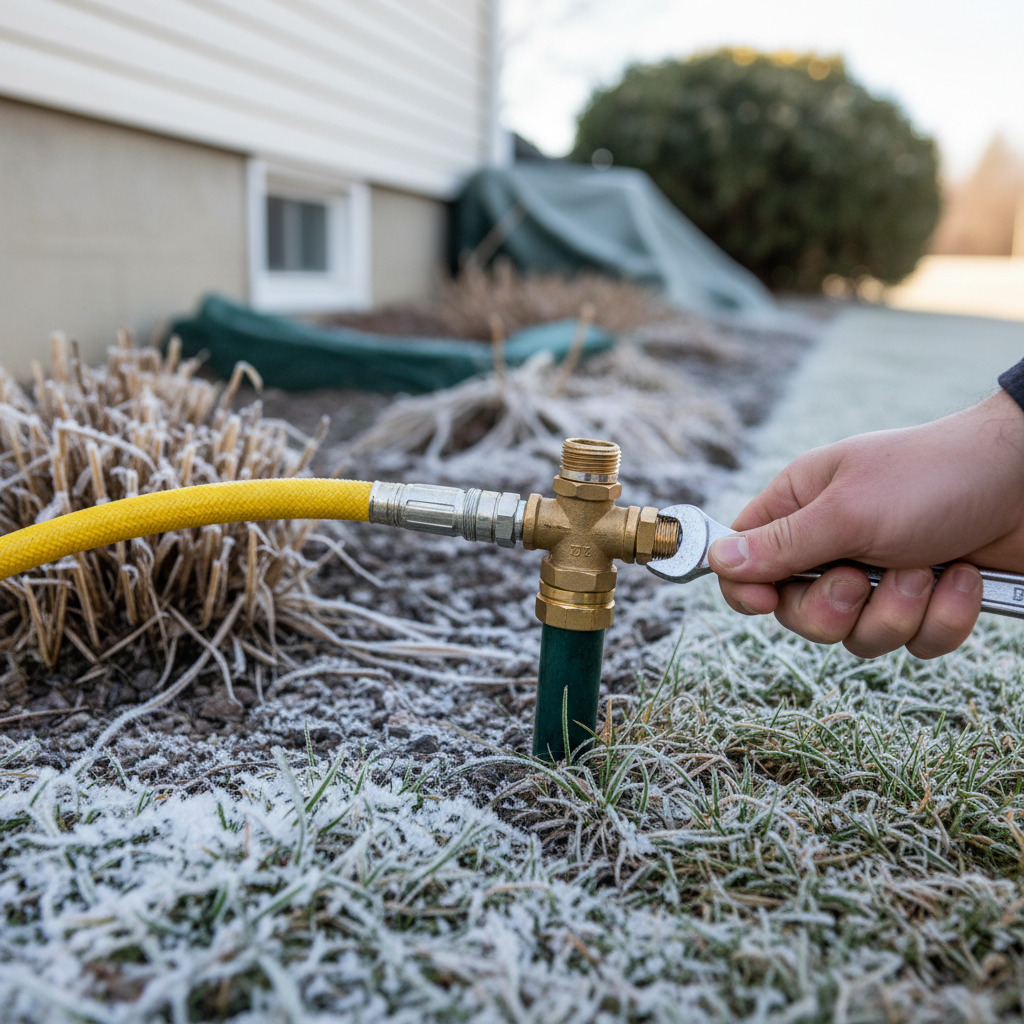

• Attach the air compressor adapter securely to the blow-out port. Ensure a tight seal.
• Set your compressor's pressure regulator. Crucially, never exceed 50 PSI for PVC systems or 80 PSI for poly pipe systems. Higher pressures can damage pipes, joints, and sprinkler heads. Start lower, around 30-40 PSI, and increase only if necessary.

6. Engage Each Zone and Blow Out Water – Systematic expulsion

• Start the air compressor and allow it to build pressure.
• Go to your irrigation controller and manually activate the zone furthest from the compressor connection point first. This helps push water through the longest path.
• As the air runs, observe the sprinkler heads in that zone. Water will initially spray out, followed by a mist, and then eventually only air. Let the air run for 1-2 minutes after you see only air, to ensure complete drying. Do not over-pressurize or run air for too long after water is cleared, as this can overheat seals.
• Once the first zone is clear, deactivate it and move to the next furthest zone. Repeat the process for all zones, working your way back towards the compressor connection.
• Important: Open only one zone at a time to maximize air pressure and effectiveness.

7. Disconnect and Relieve Pressure – Safe wrap-up

• After all zones have been cleared, turn off the air compressor.
• Carefully disconnect the air compressor adapter from the blow-out port. There might be a small hiss of residual air pressure.
• Open any remaining manual drain valves or the backflow preventer test cocks one last time to ensure any final pockets of air/water escape.

8. Winterize the Controller – Electronics protection

• Turn off the power to your irrigation controller. Most have a 'rain off' or 'system off' setting. If not, unplug it or turn off its breaker.
• Remove the battery backup (if applicable) to prevent corrosion during months of non-use.

Common Causes

• Incomplete Drainage: The primary cause of winter damage. Relying solely on gravity drains often leaves residual water in low spots, horizontal runs, or uphill sections of pipe that didn't fully drain.
• Skipping the Blow-Out: Many homeowners with complex systems or those in colder climates try to get by with just shutting off the water and opening a few drains, which is almost never sufficient for complete water removal.
• Too Much Air Pressure: Using an air compressor at too high a PSI (e.g., above 50 PSI for PVC) can damage sprinkler heads, internal valve components, and pipe joints, even if it removes the water.
• Not Draining the Backflow Preventer: This crucial assembly, often exposed above ground, is highly susceptible to freezing and very expensive to replace if water remains trapped inside.
• Waiting Too Long: Procrastinating until the first hard freeze has already occurred. Freezing can happen overnight, and once water starts to turn to ice, the damage process begins.
• Neglecting the Main Shut-off: Failing to turn off the main water supply to the irrigation system can leave the entire system pressurized and filled, making all other winterization efforts moot if even one component leaks.

Common Mistakes

• Assuming Automatic Drains are Sufficient: While helpful, automatic drains rarely remove all water, especially from lateral lines or complex layouts. Always supplement with a blow-out if possible.
• Running the Air Compressor Indefinitely: While you want to ensure lines are clear, running compressed air through dry pipes for extended periods can generate heat and damage plastic components and rubber seals in sprinkler heads and valves.
• Opening All Zones Simultaneously: This significantly reduces air pressure to each zone, making the blow-out ineffective. Always do one zone at a time.
• Forgetting the Backflow Preventer: This is one of the most common and costly mistakes. The backflow preventer's brass or copper construction and intricate internal parts make it highly vulnerable to freeze damage.
• Using a Tire Inflator/Small Compressor: A small pancake compressor for inflating tires won't have the CFM (cubic feet per minute) necessary to effectively move water through an entire irrigation zone. You need a compressor designed for blowing out lines.
• Not Labeling Valves/Zones: If you're unsure which valve controls which zone, it makes the systematic blow-out process difficult and prone to missing a zone. Label them!
• Re-pressurizing Too Early: Don't turn the main water back on 'just to check' once winterization is complete. Any water reintroduced will likely refreeze and damage the system.

Cost & Time Breakdown

Tips & Prevention

• Early Bird Gets the Worm: Don't wait until the last minute. Monitor weather forecasts and aim to winterize at least a week or two before consistent overnight freezes are expected. This gives you buffer time for equipment rental or professional scheduling.
• Know Your System: Take the time to identify your main shut-off valve, backflow preventer, blow-out port, and all zone valves. Mark them clearly for future seasons.
• Regular Inspections: In the spring, before activating your system, inspect all visible components for cracks or leaks. Test each zone thoroughly.
• Winterize Garden Hoses Too: Don't forget to disconnect and drain all garden hoses from outdoor spigots to prevent freeze damage to the spigot itself.
• Insulate Exposed Components: While winterizing removes water, insulating exposed pipes and your backflow preventer with foam covers can add an extra layer of protection against extreme cold, especially helpful in systems that might retain a tiny bit of moisture.
• Consider a Professional: If your system is complex, covers a large area, or you're uncomfortable using an air compressor, the cost of a professional winterization ($75-$150) is a small investment compared to potential repair bills.

When to Call a Professional

While winterizing a sprinkler system can be a rewarding DIY project, there are clear instances when calling a licensed irrigation specialist is the safest and most cost-effective choice. If your system involves a complex network of valves or very long runs of pipe, a smaller homeowner-grade air compressor simply won't have the necessary power (CFM) to clear all the water effectively, leaving your system vulnerable. Similarly, if you cannot locate your main shut-off valve, backflow preventer, or blow-out port, or if your backflow preventer is a pressure vacuum breaker (PVB) or reduced pressure zone (RPZ) assembly that requires specific testing and draining procedures, it's best to defer to an expert. Anytime you are uncomfortable working with pressurized air, or if you attempt the blow-out and still see water or a significant amount of mist coming from heads in subsequent zones, stop and call a professional. Improperly draining or over-pressurizing can cause more harm than good, leading to expensive repairs that far outweigh the cost of a professional service call.
