Quick Answer

When a sprinkler head refuses to pop up, it’s usually a sign of an underlying issue, often related to water pressure, blockages, or mechanical damage. The quickest path to diagnosis involves checking for adequate water pressure in the zone, inspecting and cleaning the nozzle for debris, and then physically examining the sprinkler head for any obstructions or damage to the riser mechanism. Many common causes can be resolved with basic tools and a bit of hands-on work.

The Problem

Few things are as frustrating as watching your irrigation system turn on, only to see certain sprinkler heads stubbornly stay buried, refusing to deliver water where it’s needed. This isn't just an aesthetic nuisance; it leads to dry patches, wasted water from uneven distribution, and potentially higher water bills as your system works harder to compensate. A non-popping sprinkler head is a symptom, not the problem itself. It indicates a disruption in the system's ability to exert enough pressure, a physical barrier, or internal damage preventing the head from extending. Left unaddressed, these dry spots can damage your lawn and landscaping, requiring more extensive and costly fixes down the line.

How It Works

Understanding how a pop-up sprinkler head operates is key to troubleshooting it. Most residential pop-up sprinklers use water pressure to extend and retract. When the irrigation zone is activated, water flows through the lateral lines to the sprinkler bodies. This water pressure acts against a seal and a spring inside the sprinkler body, pushing the riser assembly (which includes the nozzle) upwards, allowing water to spray out.

Inside a typical pop-up spray head, you'll find a few critical components: the body, which is buried in the ground; the riser, a plastic or metal shaft that moves up and down; the spring, which retracts the riser when the water pressure drops; and the nozzle, which screws onto the top of the riser and directs the water. Rotor heads work on a similar principle but also incorporate a geared mechanism that rotates the nozzle, distributing water over a larger area. The minimum operating pressure for most pop-up spray heads is around 15-30 PSI (pounds per square inch), while rotors often require 25-50 PSI. If the pressure falls below these thresholds, either due to a system-wide issue or a localized blockage, the spring's resistance will overpower the water pressure, and the head won't extend fully or at all. Debris, such as dirt, sand, or even small rocks, can get lodged within the body or nozzle, preventing the riser from moving freely. Additionally, physical damage from lawnmowers, foot traffic, or root intrusion can deform the body or riser, jamming the mechanism.

Step-by-Step Fix

1. Test Water Pressure – Verify adequate flow to the zone.

First, isolate the problem. Start by running the affected zone. Observe all the heads in that zone. If multiple heads are not popping up, or if all the heads are popping up weakly, low water pressure is a likely culprit. To get a more precise reading, you can often find a pressure gauge adapter that screws onto an outdoor spigot or a test port on your backflow preventer. Measure the pressure when the system is running and compare it to your sprinkler heads' recommended operating range (usually found in the manufacturer's specifications).

• If you have low pressure overall: Check your main water shut-off valve to ensure it's fully open. Inspect your backflow preventer for any leaks or partially closed valves. If you have a pressure-regulating valve, it might be faulty. Consult a professional for persistent low pressure issues.

2. Clear Debris and Inspect the Nozzle – The most common culprit.

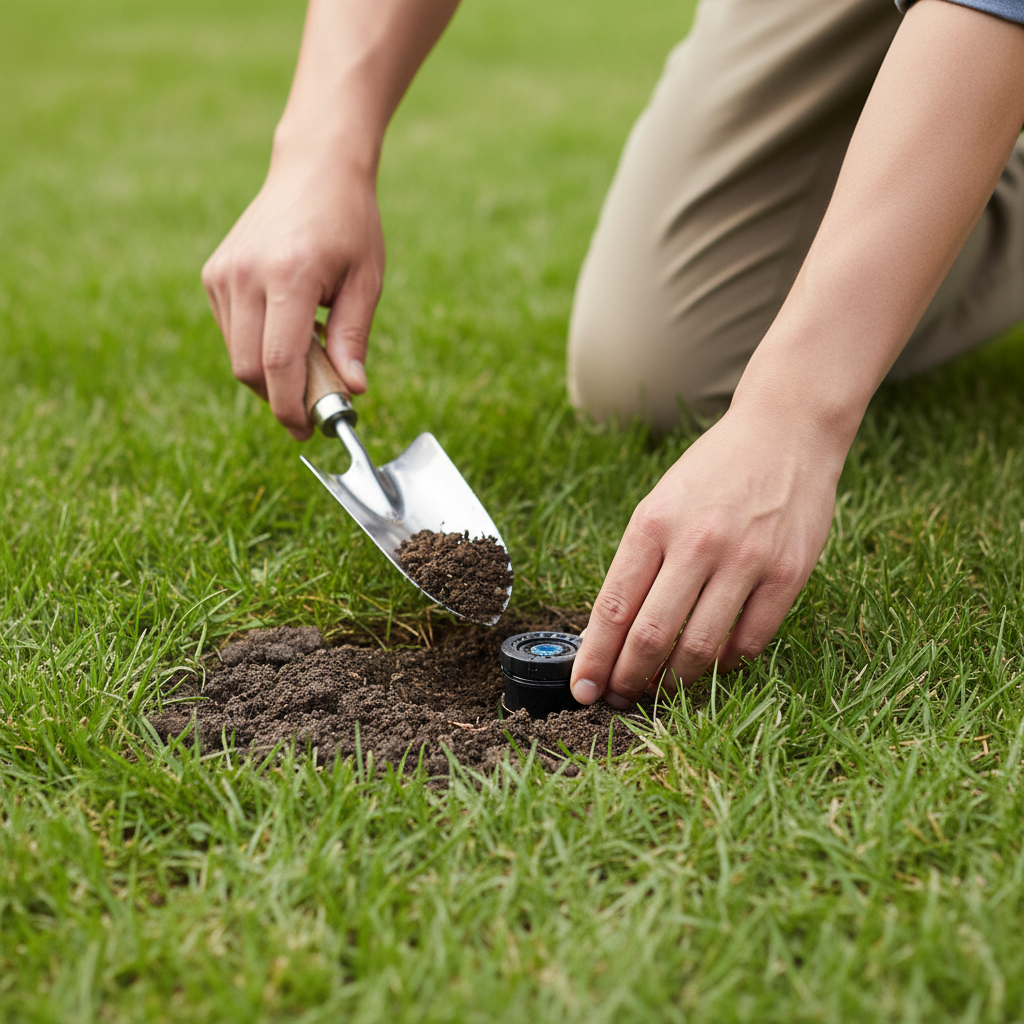

Carefully dig around the problem sprinkler head to expose the body, being mindful of potential shallow wiring or pipes. With the system off, unscrew the nozzle from the top of the riser. Look inside the nozzle and the top of the riser for dirt, sand, grass clippings, or other small debris. Use a small brush or a piece of wire (like a paperclip) to clear any blockages. Rinse the nozzle thoroughly under a faucet. While it's off, briefly turn on the zone to flush out any grit in the riser body itself. You should see a steady stream of water rise from the sprinkler body. If no water comes out, you might have a broken pipe leading to the head, or the valve for that zone might be faulty.

• Tools: Small trowel, flathead screwdriver (to pry up dirty components), small brush/paperclip.
• Safety: Always turn off the irrigation system before working directly on the heads to avoid accidental activation and injury.
• If the nozzle is cracked or damaged: Replace it with a new one of the exact same make and model to ensure proper spray pattern and flow rate.

3. Check for Obstructions Around the Riser – External interference.

With the nozzle removed and the system briefly activated, gently pull up on the riser with your fingers (it should extend easily). If it feels stiff or resists movement, the problem isn't the nozzle. Turn off the system. Dig out more dirt around the head, exposing the top few inches of the sprinkler body. Look for grass, roots, or even compacted soil pressing against the side of the riser or the sealing components. Use a utility knife or shears to cut away any encroaching roots or turf that might be jamming the riser. Ensure there's a small clearance, about 1/4 to 1/2 inch, around the top of the sprinkler body to prevent future binding.

• If the riser itself is bent or cracked: The internal components are likely damaged, and the entire sprinkler head will need to be replaced.

4. Examine the Riser for Internal Damage (Replace Head) – If all else fails.

If clearing debris and external obstructions doesn't work, the internal components of the sprinkler head are likely damaged. This often means the spring is weak or broken, or the sealing mechanism inside the body is compromised. In most cases, it's more cost-effective and simpler to replace the entire sprinkler head rather than trying to repair internal parts.

• To replace a sprinkler head: Dig around the faulty head to expose the elbow fitting or flexible swing pipe connecting it to the main lateral line. Unscrew the old head from the fitting. Wrap the threads of the new sprinkler head with 2-3 layers of Teflon tape (plumber's tape) to ensure a watertight seal. Screw on the new head hand-tight, then give it another half to full turn with channel locks or a wrench. Be careful not to overtighten, as this can crack the plastic fitting. Backfill the dirt, making sure the top of the sprinkler head is flush with the surrounding grade.
• Tools: Small trowel, channel lock pliers or pipe wrench, Teflon tape, replacement sprinkler head (ensure it's the exact same type, e.g., spray, rotor, and arc/radius if possible).

5. Inspect the Zone Valve – A less common but important check.

If multiple heads in a single zone aren't popping up, or if they are popping up very weakly, and you've ruled out main water pressure issues, the zone valve itself might be partially closed or faulty. Locate the zone valve box, typically a green or black box in the ground. Open it and ensure the manual shut-off lever or screw on the valve is fully in the
