Quick Answer

When an electric dryer runs but produces no heat, the primary suspects are usually a blown thermal fuse or a broken heating element. A thermal fuse is a crucial safety component that permanently breaks its circuit when the dryer's internal temperature exceeds a safe limit, often due to restricted airflow from a clogged vent. A heating element is a resistive coil that generates the actual heat. Homeowners can often diagnose and replace both components with common household tools, saving significant repair costs. However, always confirm the power supply is off before attempting any repairs.

The Problem

Imagine loading your dryer with a fresh batch of wet laundry, setting it to tumble, and returning later only to find your clothes are still damp, or worse, stone cold. This frustrating scenario points directly to a lack of heat. Your dryer is tumbling, the drum is spinning, and the lights are on, but the air inside remains ambient. This isn't just an inconvenience; it can lead to longer drying times, increased energy consumption, and eventually, mold and mildew growth in your clothes if they don't dry properly. Before you panic and call a costly appliance repair service, understanding the underlying cause can empower you to fix this common issue yourself, often for less than the price of a service call. The goal here is to identify if the problem lies with a safety cutoff (like a thermal fuse) or the heat-producing component itself (the heating element).

How It Works

To effectively troubleshoot a dryer that isn't heating, it helps to understand the basic physics and electrical components involved. An electric dryer generates heat through a heating element—essentially a long, coiled, high-resistance wire (often Nichrome) powered by 240 volts of electricity. When electrical current flows through this wire, its resistance causes it to glow red hot, radiating heat into the dryer drum. A powerful blower fan then draws air from the room, pulls it over the hot heating element, and circulates this heated air through the tumbling clothes, absorbing moisture. Finally, the moist, warm air is expelled through the dryer vent to the outside.

Several safety devices are integrated into this system to prevent overheating and potential fires. The most common is the thermal fuse. This small, non-resettable, temperature-sensitive switch is typically located on the blower housing or heat duct. If the temperature inside the dryer (often due to restricted airflow from a clogged lint screen or vent) exceeds a predetermined safe limit, the thermal fuse 'blows,' creating an open circuit that disconnects power to the heating element circuit, preventing it from generating heat. Once blown, it must be replaced. Other safety devices include a high-limit thermostat, which automatically resets once the temperature drops, and a cycling thermostat, which regulates the temperature during the drying cycle by turning the heating element on and off. When your dryer tumbles but doesn't heat, it most frequently points to either the thermal fuse or the heating element itself failing, as the motor and control functions are still operational.

Step-by-Step Fix

Before you begin, always unplug the dryer from the wall outlet to ensure there's no electrical power, even if the dryer appears off. This is crucial for your safety.

1. Check the Circuit Breaker – Basic Power Check

   • Go to your electrical service panel and locate the two dedicated circuit breakers for your dryer (typically 30 amps each, often ganged together). If one or both are tripped (usually in the middle or 'off' position), reset them by flipping them completely off, then back on. A partial trip can supply 120V to the dryer motor but not the 240V needed for the heating element.
   • If this doesn't work: Proceed to the next step.

2. Inspect the Lint Screen and Exhaust Vent – Airflow is Key

   • Pull out the lint screen from its slot on top or inside the door and clean it thoroughly with your hand to remove all lint. Then, wash it with soapy water and a brush to remove fabric softener residue that can clog microscopic pores, restricting airflow.
   • Disconnect the flexible duct from the back of the dryer and inspect both the duct and the wall opening for lint blockages. Use a shop vac or a dryer vent cleaning brush to clear any obstructions.
   • Go outside and verify that the external vent hood flap opens freely and isn't blocked by lint, debris, or even a bird's nest.
   • Safety Note: Clogged dryer vents are a leading cause of household fires. Regular cleaning is essential.
   • If this doesn't work: A clogged vent often causes thermal fuse failure, so the fuse will likely need replacing.

3. Access the Rear Panel – Getting Inside

   • Pull the dryer away from the wall, providing enough space to work behind it. You may need assistance to move heavier models.
   • Using a Phillips head screwdriver or a nut driver (typically 1/4-inch or 5/16-inch), remove the screws securing the large rear access panel to the dryer cabinet. Store the screws in a safe place.
   • Carefully pull the panel away and set it aside, exposing the internal components, including the heating element housing and thermostats.

4. Pinpoint the Thermal Fuse – The Safety Breaker

   • Locate the thermal fuse. It's usually a small, white, rectangular or cylindrical component with two wire terminals, mounted on the blower housing (often on the exhaust duct leading from the drum) or near the heating element housing. It's distinct from the thermostats, which often have a small button in the center (for high-limit reset type).
   • Tools: Multimeter (set to ohms/continuity).

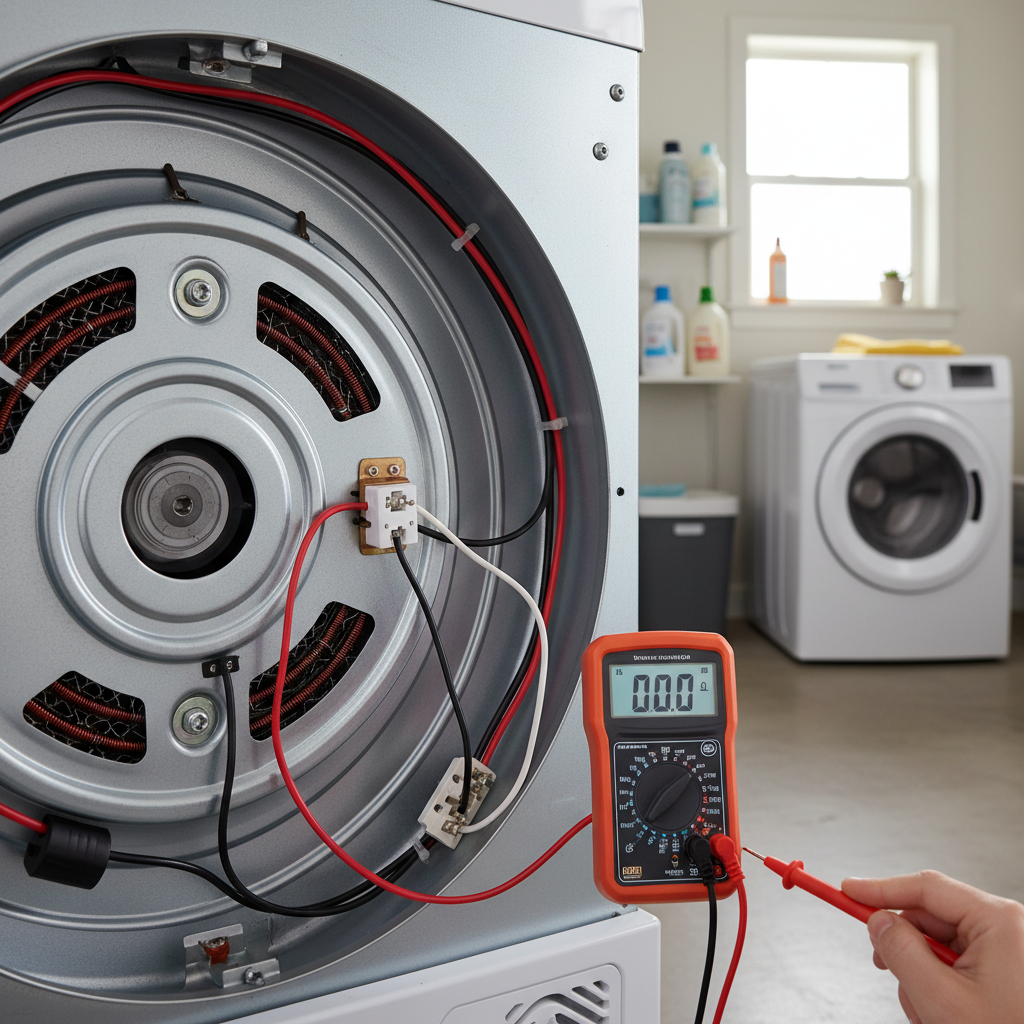

   • Test: Disconnect the two wires leading to the thermal fuse (note their positions). Touch the multimeter probes to each terminal of the fuse. A good fuse will show continuity (a reading of 0-1 ohm or a beep). A blown fuse will show infinite resistance or 'OL' (open loop) – meaning no continuity.
   • If it's blown: Replace it. This is the most common and cheapest fix. Remember to address the underlying cause of the fuse blowing (e.g., clogged vent).

5. Test the Heating Element – The Heat Source

   • Locate the heating element housing, typically a metal box or coil visible once the rear panel is removed. The actual heating coil is usually encased within.
   • Tools: Multimeter (set to ohms/continuity).
   • Test: Disconnect the power wires leading to the heating element (there might be 2 or 4). Touch the multimeter probes to the terminals of the heating element. It should show a resistance reading between 8 and 20 ohms (check your dryer's specific service manual if unsure). A reading of 'OL' or infinite resistance indicates a broken heating coil, requiring replacement of the entire heating element assembly.
   • If it's broken: Replace the heating element assembly. Note that sometimes the coil breaks visually, but testing with a multimeter is definitive.

6. Check the Cycling Thermostat and High-Limit Thermostat – Temperature Regulators

   • Locate the cycling thermostat (often near the blower assembly or on the element housing, sometimes with a temperature selection dial) and the high-limit thermostat (typically mounted directly on the heating element housing or exhaust duct alongside the thermal fuse). They look like small, round discs with two terminals.
   • Tools: Multimeter (set to ohms/continuity).
   • Test: Disconnect the wires from each thermostat one at a time and test for continuity across their terminals. Both should show continuity. A reading of 'OL' or infinite resistance indicates a faulty thermostat. The high-limit thermostat might also have a small red reset button – if present, press it firmly.
   • If faulty: Replace the non-continuous thermostat. These are less common failures for no heat situations but worth checking.

7. Reconnect and Test – Putting it Back Together

   • Once you've replaced any faulty components, carefully reconnect all wires to their correct terminals. Double-check that all connections are secure and no wires are pinched.
   • Replace the rear access panel, securing it with all removed screws.
   • Plug the dryer back into the wall outlet. Run an empty cycle on a heat setting (e.g., 'normal' or 'high heat') for 5-10 minutes. Open the door and carefully feel inside for warmth. If it's heating, you've successfully fixed the problem!

Common Causes

• Clogged Lint Trap or Vent: The single most common cause. Restricted airflow leads to overheating, which then blows the thermal fuse. This isn't just about efficiency; it's a major fire hazard.
• Blown Thermal Fuse: A non-resettable safety device designed to break the circuit when the dryer overheats. Once it blows, it must be replaced. This is often a symptom of a clogged vent.
• Burnt-Out Heating Element: The resistive coil that generates the heat can simply burn out over time due to repeated heating and cooling cycles, or from power surges.
• Faulty High-Limit Thermostat: This thermostat is designed to trip and cut power to the heating element if the temperature gets too high. While some automatically reset, a permanently failed one can prevent heating.
• Faulty Cycling Thermostat: This thermostat regulates the temperature during the drying cycle. If it fails in an 'open' position, it won't allow power to the heating element.
• Tripped Circuit Breaker: The dryer requires 240V. If one of the two 120V legs trips, the motor might still run (on 120V), but the heating element (requiring 240V) won't activate.

Common Mistakes

• Ignoring the Vent: Many homeowners replace a thermal fuse only to have it blow again a few weeks later because they didn't clear the underlying vent blockage. Always clean your dryer vent thoroughly when replacing a thermal fuse.
• Not Unplugging the Dryer: Working on an appliance without disconnecting power is extremely dangerous. Always unplug it from the wall, even if you've flipped the breaker.
• Guessing vs. Testing: Replacing parts based on assumptions without testing them with a multimeter can lead to unnecessary expenses and frustration. A multimeter is an inexpensive and essential diagnostic tool.
• Incorrect Part Replacement: Dryer models vary. Always look up your specific dryer's model number (usually found on a sticker inside the door frame or on the back) to ensure you order the correct replacement thermal fuse or heating element.
• Pinching Wires: When reassembling the dryer, ensure no wires are pinched between panels or screws. This can cause electrical shorts or component damage.
• Over-tightening Screws: Don't overtighten screws on access panels; this can strip the threads or crack plastic components.

Cost & Time Breakdown

Tips & Prevention

• Clean the Lint Screen Every Load: This is the easiest and most effective way to maintain airflow and prevent overheating. Don't just wipe; ensure it's truly clear.
• Deep Clean the Vent Annually: Use a dryer vent cleaning brush and vacuum to clear the entire exhaust duct from the dryer to the exterior exit point at least once a year, more often if you use the dryer frequently.
• Avoid Overloading: Overloading the dryer restricts airflow, makes the motor work harder, and significantly prolongs drying times, stressing components.
• Check External Vent Cap: Periodically inspect the outdoor vent hood to ensure the flap opens freely and isn't obstructed by lint, snow, or even pest nests.
• Consider Shorter, Sturdier Ductwork: If possible, use rigid metal ducting for your dryer vent instead of flexible foil or plastic, which can sag and trap more lint.
• Listen for Unusual Noises: Squealing, grinding, or banging noises can indicate failing motor bearings, idler pulleys, or drum rollers, which can indirectly affect heating efficiency or cause other issues. Address them promptly.

When to Call a Professional

While many common dryer heating issues are homeowner-fixable, there are clear instances when calling a licensed appliance technician is the safest and most practical choice. If, after following these steps, your dryer still isn't heating, or if you encounter complex electrical issues beyond basic continuity testing, it's time to call a pro. Specifically, if you suspect issues with the main control board, the motor, or the primary power supply to the unit, these tasks require specialized diagnostic tools and expertise to ensure safe repair. If you're uncomfortable working with electrical components, or if your multimeter readings are confusing, don't hesitate to seek professional help. Additionally, if your dryer is gas-powered and not heating (which this guide did not cover), never attempt DIY repairs on gas lines or gas valves; instantly call a licensed gas appliance technician to avoid dangerous leaks and potential carbon monoxide hazards.
