Quick Answer

If your furnace is blowing cold air, particularly after running for a short period, the most frequent culprit is a severely clogged air filter. This simple issue restricts airflow, causing the furnace's heat exchanger to overheat. To protect itself, the furnace's safety controls will shut off the burners while the fan continues to run, circulating unheated air. A timely filter replacement can often resolve this problem without the need for a professional.

The Problem

There's nothing quite as unwelcome on a chilly day as your furnace kicking on, only to blast cold air throughout your home. This frustrating scenario often leads homeowners to immediately panic about expensive repairs. However, in a surprising number of cases, the cause isn't a major mechanical failure but a simple, overlooked maintenance item: a dirty air filter. A furnace blowing cold air isn't just uncomfortable; it's a sign that your heating system isn't operating as it should, potentially leading to higher energy bills, increased wear and tear on components, and even early system failure if left unaddressed. Understanding the underlying mechanism is key to quickly diagnosing and resolving this common issue.

How It Works

Your furnace operates by burning fuel (natural gas or propane) or using electric heating elements to heat a component called the heat exchanger. Air from your home is drawn into the furnace through a return duct, passes over the hot heat exchanger, absorbs heat, and is then pushed by the blower fan through your ductwork and into your living spaces. This cycle relies on a continuous and unobstructed flow of air.

The air filter plays a crucial role in this process by trapping dust, pet dander, pollen, and other airborne particles, preventing them from accumulating on the heat exchanger and blower motor. When the filter becomes clogged with these particles, it creates a significant barrier to airflow. Imagine trying to breathe deeply through a thick blanket – that's what your furnace is experiencing. This reduced airflow has critical consequences:

1. Overheating Heat Exchanger: With less air passing over it, the heat exchanger cannot dissipate its heat effectively. It rapidly reaches dangerously high temperatures.
2. Safety Limit Switch Activation: Modern furnaces are equipped with safety devices, including high-limit switches. These sensors monitor the temperature of the heat exchanger. If the temperature exceeds a preset safety threshold (typically around 200°F), the high-limit switch automatically shuts off the furnace's burners to prevent damage, such as cracking the heat exchanger or even a fire hazard.
3. Continuous Blower Operation: Even after the burners shut off, the blower fan often continues to run for a period. This is designed to cool down the overheated heat exchanger and sometimes to distribute any residual heat. However, since the burners are off, the air being circulated is now unheated, leading to the sensation of cold air blowing from your vents.

Once the heat exchanger cools down, the high-limit switch resets, and the furnace may attempt to cycle on again. If the airflow issue (the clogged filter) persists, the cycle will repeat: burners ignite, heat exchanger overheats, safety switch trips, burners shut off, and cold air blows. This short-cycling is inefficient and stressful for your furnace components.

Step-by-Step Fix

1. Safety First — Shut off the power to your furnace before you begin any inspection or maintenance.

Locate the main power switch on or near the furnace (often a standard light switch) and flip it to the 'OFF' position. For gas furnaces, you may also want to close the gas supply valve. This prevents accidental startup and reduces the risk of electrical shock or injury.

2. Locate the Air Filter — Find your furnace's air filter slot.

The air filter is usually located in a dedicated slot on the return air duct right before the furnace blower compartment, or sometimes directly within the furnace unit itself, often on the bottom, side, or top. It's typically a rectangular frame, about 1 inch thick, but can be up to 4 inches or more for higher-efficiency filters. Inspect the filter's current condition and make a note of the size printed on the frame (e.g., 20x25x1). A heavily soiled filter will appear dark gray or black with a thick layer of dust.

3. Remove the Old Filter — Carefully slide out the dirty air filter.

Take hold of the edge of the filter and slide it out of its slot. Be mindful that accumulated dust may fall off, so have a trash bag ready. Examine the filter closely; if it's dense with dust and debris, you've likely found your problem. Compare the dirty side to the clean side and note the direction of the airflow arrow on the filter's frame. This arrow should always point towards the furnace.

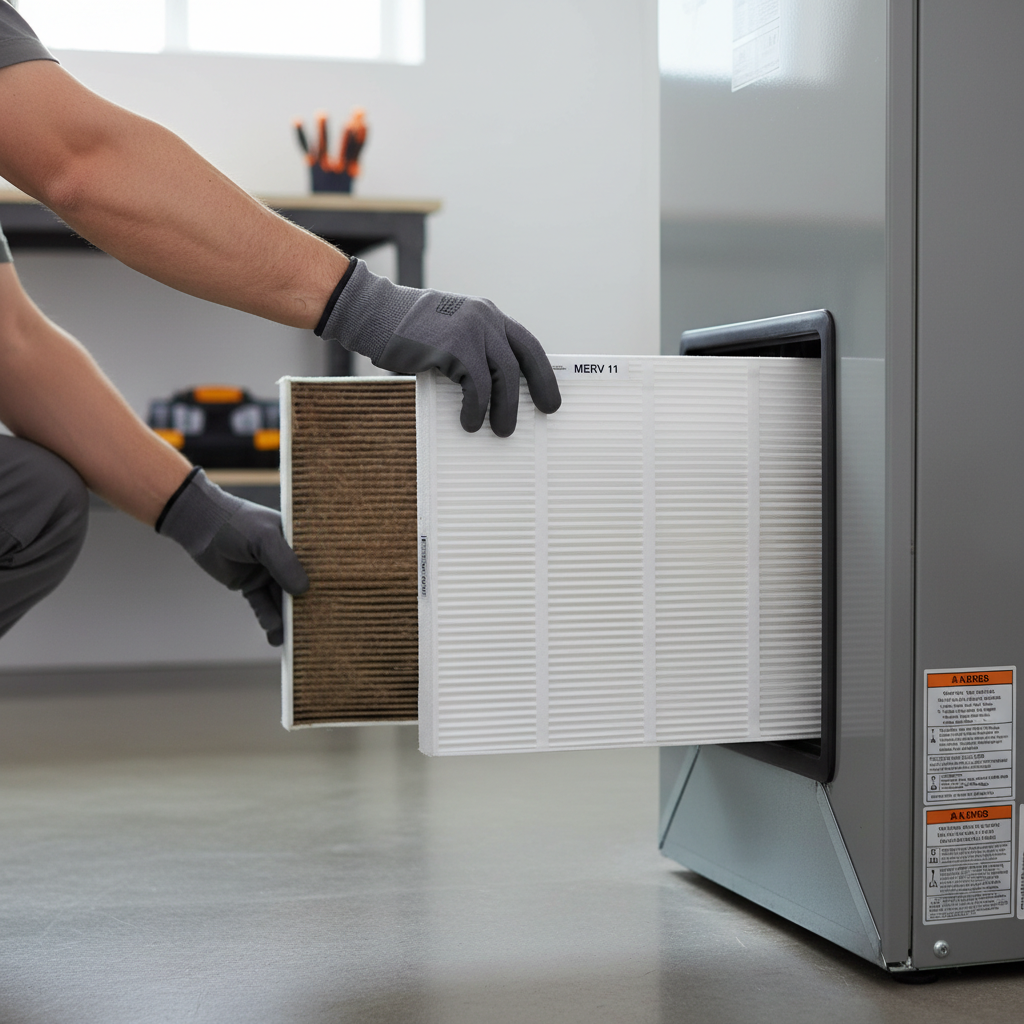

4. Install a New Filter — Replace the old filter with a clean, correct-sized replacement.

Using the noted dimensions, insert a brand-new filter. Ensure the airflow arrow on the new filter points in the correct direction – towards the furnace unit. A filter inserted the wrong way won't capture particles effectively and can still impede airflow. Use a filter with the appropriate MERV rating for your system. Most residential furnaces handle MERV 8-11 well. Higher MERV ratings (13+) can sometimes restrict airflow too much for older systems, even when clean.

5. Restore Power & Test — Turn your furnace back on and observe its operation.

Once the new filter is securely in place, restore power to the furnace by flipping the switch back to 'ON' and reopening the gas valve if you closed it. Set your thermostat to 'HEAT' and raise the temperature a few degrees above the current room temperature to trigger the furnace to run. Listen for normal operation: the ignitor clicking, the burners firing, and eventually warm air coming from your vents. It may take a few minutes for the system to warm up and for hot air to reach all registers.

6. Monitor for Recurrence — Observe your furnace's behavior over the next few cycles.

Pay attention to whether the furnace cycles normally, producing consistent warm air without short-cycling. If the cold air issue returns after the filter change, or if the furnace still struggles to ignite, the high-limit switch or other safety controls may be faulty, or there could be a deeper issue with the heat exchanger or gas supply. In such cases, it's time to consider a professional diagnosis. Also, check for other blockages in your return air ducts or around the outdoor unit if you have a heat pump hybrid system. Ensure all vents and returns are open and unobstructed by furniture or rugs.

Common Causes

• Clogged Air Filter: This is, by far, the most common reason. A dirty filter restricts airflow, causing the heat exchanger to overheat and trip the high-limit safety switch, shutting off the burners.
• Malfunctioning High-Limit Switch: If the high-limit switch itself is faulty, it might prematurely trip even with adequate airflow, or it might fail to reset after cooling. This can lead to the burners turning off too soon.
• Thermostat Issues: A faulty thermostat might incorrectly sense the room temperature, fail to call for heat properly, or have loose wiring. Ensure it's set to 'HEAT' and that the fan setting is 'AUTO' (not 'ON' if you want the fan to cycle with the heat).
• Pilot Light (Gas Furnaces Only): For older gas furnaces, a pilot light that constantly goes out will prevent the burners from igniting. Common causes are a dirty thermocouple (the safety sensor for the pilot), a weak pilot flame, or a draft.
• Flame Sensor (Gas Furnaces Only): Modern gas furnaces use a flame sensor to confirm ignition. If this rod gets dirty or corroded, it won't detect the flame, and the furnace's control board will shut off the gas valve as a safety measure, leading to cold air.
• Lack of Fuel (Gas or Propane Furnaces): Ensure your gas supply valve is fully open and that you have sufficient propane if on a tank system. A lack of fuel will prevent burner ignition.
• Condensate Drain Clog (High-Efficiency Furnaces): High-efficiency (condensing) furnaces produce acidic condensate. If the drain line or pan clogs, a safety switch (float switch) can shut down the furnace to prevent water damage, resulting in no heat.

Common Mistakes

• Ignoring the Air Filter: Many homeowners neglect to check or replace their air filter regularly, assuming it's a minor component. This is the single biggest mistake, leading to the most furnace issues.
• Using the Wrong Filter Size: Inserting a filter that's too small leaves gaps for air (and dirt) to bypass, while one that's too large won't fit at all or will buckle, impeding airflow.
• Installing Filter Backwards: The airflow arrow is crucial. Installing a filter with the arrow pointing away from the furnace severely reduces its effectiveness and can still cause airflow issues.
• Setting Thermostat Fan to 'ON': While not a
