Quick Answer

When your electric dryer suddenly stops producing heat, don't immediately assume it's a major appliance breakdown. The most frequent culprits are a blown thermal fuse or a failed heating element. Both are relatively inexpensive parts and can often be replaced by a homeowner with basic tools in under an hour, provided you follow safety precautions and diagnostic steps carefully. This guide will walk you through identifying and replacing these common issues, potentially saving you hundreds of dollars in repair costs.

The Problem

Imagine pulling clothes from the dryer, expecting warmth and instead finding a damp, cold load. A dryer that tumbles but doesn't heat is a frustrating problem, often leading to wasted time and extra laundry cycles. The core issue is a disruption in the heating circuit. This can stem from a safety device designed to prevent overheating (like a thermal fuse) or the component directly responsible for generating heat (the heating element) failing due to wear and tear or electrical issues. While the symptoms are clear – no heat – pinpointing the exact cause requires a bit of methodical troubleshooting.

How It Works

An electric dryer’s heating system is remarkably straightforward, yet interconnected. When you select a heat setting, electricity flows from your home's main panel, through the dryer's power cord, and into the internal components. The critical path for heating involves several key safety and operational parts before reaching the heating element itself.

First, power goes through a door switch, ensuring the dryer only operates when the door is closed. Next, it often passes through a high-limit thermostat, which acts as a safety against excessive temperatures. If the dryer gets too hot, this thermostat will trip, cutting power to the heating element. Close behind is often a thermal cut-off fuse (sometimes just called a thermal fuse). This is a one-time safety device designed to permanently blow and shut off power to the heating circuit if the dryer reaches an unsafe temperature, usually due to restricted airflow caused by lint buildup or a failing vent. Once blown, it must be replaced.

From there, power typically reaches the operating thermostat, which cycles on and off to maintain your selected temperature. Finally, the electricity arrives at the heating element. This element is essentially a long coil of resistive wire (like a toaster oven element) that glows red hot when electricity passes through it, generating the heat that dries your clothes. Air is drawn into the dryer, heated by the element, circulated through the tumbling clothes, and then expelled through the lint trap and dryer vent. If any component in this circuit – the door switch (less common for no heat), the thermal cut-off fuse, a thermostat, or the heating element itself – fails, the heating process stops. Restricted airflow significantly impacts heat generation and safety, making a clean vent crucial for proper dryer operation and longevity.

Step-by-Step Fix

Always begin with safety — Disconnect the dryer from its power source before performing any diagnostic or repair work. For electric dryers, unplug the power cord from the wall outlet. For gas dryers, in addition to unplugging, turn off the gas supply valve.

1. Check Your Circuit Breaker — Ensure power is flowing correctly.

• Go to your home's main electrical panel.
• Locate the double-pole breaker (two connected switches) for your dryer.
• If it's tripped (usually halfway between ON and OFF), firmly switch it completely OFF, then back ON. A dryer requires 240 volts for heating, supplied by two separate 120-volt legs, so one tripped leg will cause the dryer to tumble but not heat. If it trips again immediately, you likely have a short circuit and should call an electrician.

2. Inspect the Lint Trap and Exhaust Vent — Clear airflow is crucial for heating.

• Clear the lint trap: Remove the lint screen and thoroughly clean it of any lint. This should be done after every load, but sometimes buildup can occur beneath the screen.
• Check the exhaust vent: Disconnect the dryer's flexible vent hose from the wall and the back of the dryer. Use a shop-vac with a hose attachment to clear out any accumulated lint from both the dryer's exhaust port and the wall vent pipe. Check for kinks or crushed sections in the flexible hose itself. A blocked vent is the most common reason for a thermal fuse to blow and prevents efficient heat transfer.

3. Locate and Test the Thermal Fuse — A common culprit for no heat.

• Access the dryer's rear panel: Using a screwdriver (usually a Phillips head or nut driver), remove the screws securing the rear access panel of your dryer. Carefully set the panel aside.
• Identify the thermal fuse: The thermal fuse is typically a small, white, non-resettable component, often located near the exhaust duct or heating element housing. It will have two wires connected to it. Refer to your dryer's service manual or an online diagram for its exact location if you're unsure.

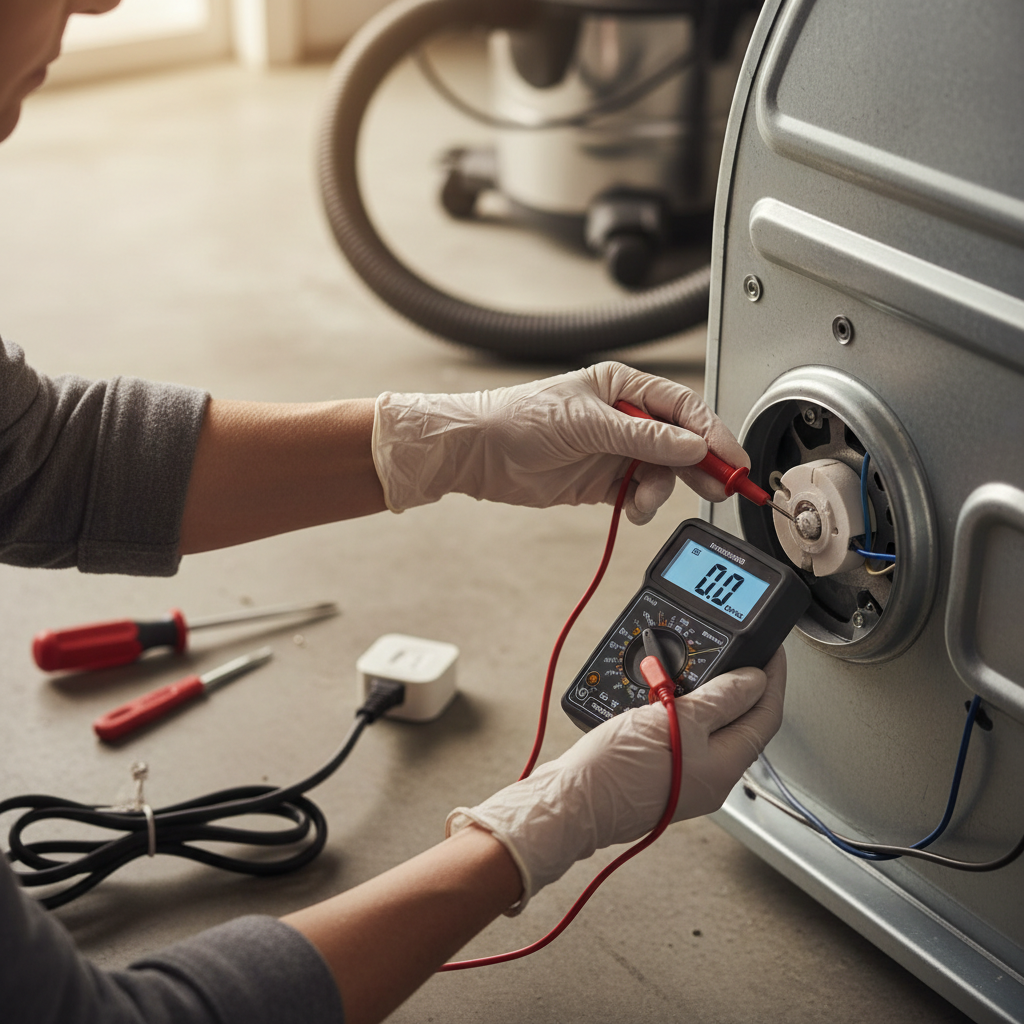

• Test with a multimeter: Set your multimeter to the Rx1 (resistance) or continuity setting. Place one probe on each terminal of the thermal fuse.
  • **If you get a reading of 0 ohms or a continuity
