Quick Answer

The most critical mistake in winterizing a sprinkler system is not completely removing all water from the lines, leading to freeze damage. The most effective DIY method for homeowners with an air compressor is the manual blowout, carefully pushing water out of each zone with compressed air to prevent pipes and sprinkler heads from cracking. This process requires a proper air compressor, the right adapter, and a systematic approach to ensure no water is left behind in the main lines, lateral pipes, or sprinkler heads.

The Problem

Many homeowners attempt to winterize their sprinkler systems by simply draining the lines or using an inadequate air compressor, believing this is enough to prevent freeze damage. However, even a small amount of standing water left in the pipes can expand when it freezes, causing pipes to burst, sprinkler heads to crack, or solenoid valves to fracture. This oversight, often an honest mistake, can lead to thousands of dollars in repairs come spring, involving extensive digging, pipe replacement, and system reinstallation. The damage isn't always immediately visible, sometimes manifesting as subtle leaks that lead to higher water bills and landscape erosion over time. The core issue is the misunderstanding of how thoroughly water must be removed from every component of the irrigation system, from the main supply line to the furthest sprinkler head in each zone.

How It Works

An irrigation system is a network of pipes, valves, and sprinkler heads designed to deliver water to your lawn and garden. Water typically enters the system from your home's main water supply, passes through a backflow preventer (essential for preventing contaminated irrigation water from entering your potable water supply), and then branches out into various zones, each controlled by an electric solenoid valve. When a zone is activated, its valve opens, allowing water to flow through the lateral lines to the sprinkler heads, which distribute water over specific areas. The problem in winter is that water remaining in these lines, even in small pockets, will expand by about 9% when it freezes. This expansion creates immense pressure within the rigid pipes and components, far exceeding their structural limits. PVC pipes, generally rated for around 160-200 psi, can easily crack when subjected to the thousands of pounds per square inch of pressure generated by freezing water. Even flexible polyethylene pipes are susceptible to damage, though they may stretch more before bursting. A proper winterizing blowout works by introducing pressurized air into the system after the municipal water supply is turned off and drained. This air pushes any remaining water out through the opened sprinkler heads, effectively 'blowing out' the system. It's crucial to perform this process methodically, zone by zone, to ensure all water is expelled, including from the lower parts of the lines and the sprinkler head bodies themselves. The backflow preventer also needs specific attention, as it contains sensitive internal components that can be damaged by freezing water if not properly drained.

Step-by-Step Fix

Safety First! This guide involves working with compressed air and water. Always wear appropriate eye protection. Never stand directly over a sprinkler head during a blowout. Ensure everyone, especially children and pets, are clear of the work area.

1. Shut Off Main Water Supply — Locate and close the main shut-off valve.

   • Find the main water valve for your irrigation system, typically located near your main water meter or where the irrigation line branches off from your house's water supply. Turn it off completely. This prevents any more water from entering the system.
   • If you're unsure where your main shut-off is, consult your home's blueprint or follow the irrigation line from the backflow preventer towards your house.

2. Drain the Backflow Preventer — Open drain valves and test ports.

   • Your backflow preventer will have two shut-off handles and typically two or more test cocks. Start by closing the handle closest to the house's water supply (this should already be off from step 1). Then, close the second handle (closest to the sprinkler system).
   • Using a flathead screwdriver, open the two test cocks slowly to release any trapped water. Point them downwards. You'll hear a hiss and see water drain. Leave them open.
   • Open the main drain valves on the backflow device if present. Some designs may require you to rotate the handles at 45-degree angles to fully drain.

3. Connect Air Compressor — Attach the air compressor to the system's blow-out port.

   • Locate the blow-out port, usually a small spigot with a cap and a male threaded connection, located downstream from the backflow preventer. Remove the cap.
   • Screw the blow-out adapter onto the port. Ensure the adapter has a quick-connect fitting compatible with your air compressor's hose.
   • Connect your air compressor hose to the adapter. Make sure the connection is secure to prevent air leaks.
   • Set your air compressor's pressure regulator. Crucially, never exceed 50 PSI for PVC systems or 80 PSI for polyethylene systems. Higher pressure can damage pipes and components.

4. Open the Furthest Zone Manually — Prepare for air to expel water.

   • Go to your irrigation controller and manually open the zone that is physically furthest from your blow-out connection. This allows air to travel through the longest path, pushing water efficiently.
   • Leave this zone open for the entire process until all water is expelled.

5. Start the Blowout (Zone by Zone) — Introduce air systematically.

   • Turn on your air compressor. With the furthest zone open, slowly open the ball valve on your blow-out adapter (or the valve on your compressor line) to introduce air into the system.

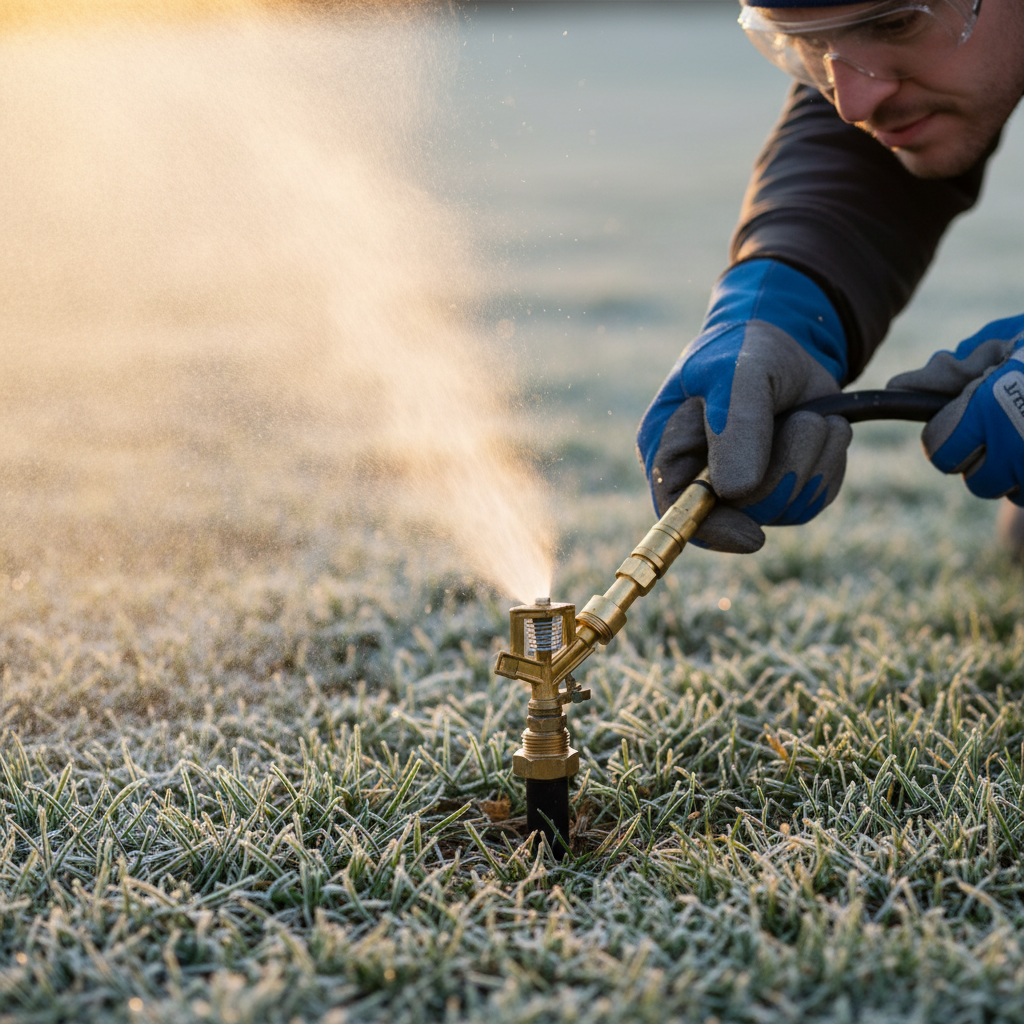

   • Watch the sprinkler heads in the open zone. Water will begin to spray out, followed by a mist. Allow the air to run for 1-2 minutes after only mist is visible. Do not run the compressor for too long on dry pipes, as this can generate heat and damage components.
   • If water stops but you don't see mist, check for closed valves, disconnected hoses, or insufficient air pressure.

6. Cycle Through Remaining Zones — Repeat the process for all zones.

   • Once the first zone is clear (only mist), close that zone on your controller and manually open the next zone. Repeat the blowout process, allowing the compressor to run until only mist appears from the sprinkler heads.
   • Continue this systematic approach for all remaining zones, working your way towards the blow-out port.
   • If you have a drip irrigation system, treat it as a separate zone. Open it, blow out the water, and ensure no emitters are clogged.

7. Final System Drain & Disconnect — Release pressure and remove equipment.

   • After all zones have been cleared of water, turn off your air compressor and close the ball valve on the blow-out adapter.
   • Slowly disconnect the air hose, then remove the blow-out adapter. Replace the cap on the blow-out port.
   • Double-check that all backflow preventer valves and test cocks remain open as per step 2, to allow any residual water to escape and prevent trapping water that could freeze.

8. Insulate Exposed Components — Protect devices from extreme cold.

   • Wrap any exposed pipes, particularly the backflow preventer, with insulation tape or foam covers. This provides an extra layer of protection against unexpected deep freezes.
   • Consider placing a plywood or plastic cover over the backflow preventer to shield it from direct wind and precipitation.

Common Causes

• Incomplete Water Removal: The #1 cause of freeze damage. Failure to ensure all water is expelled from main lines, lateral lines, and sprinkler heads. Even small pockets of water will expand and burst pipes. Gravity draining alone is often insufficient for most residential systems.
• Insufficient Air Compressor: Using a small, underpowered air compressor (e.g., a pancake compressor meant for nail guns) that doesn't provide enough sustained volume (CFM) or pressure to adequately push water out of longer or larger zones. This leaves water behind.
• Incorrect Air Pressure: Blowing out the system with too much air pressure. While more pressure might seem better, exceeding the pipe's pressure rating (e.g., 50 PSI for PVC) can damage internal components, seals, and lead to hairline fractures that only become apparent months later.
• Skipping Zones or Backflow Draining: Neglecting to clear specific zones (especially drip lines) or, critically, failing to properly drain and open the test cocks on the backflow preventer. The backflow device is often the most expensive component to replace if damaged by ice.
• Late Winterization: Waiting until the last minute, when temperatures have already dropped significantly below freezing, increases the risk that some water in the system has already begun to ice up, making a complete blowout difficult or impossible.
• No Blow-Out Port: Trying to adapt a connection points not designed for compressed air. Some older systems might not have a dedicated blow-out port, leading DIYers to improvise, which can be unsafe and ineffective.

Common Mistakes

• Mistake: Assuming gravity draining is enough. Instead: Most modern sprinkler systems, especially those with anti-siphon valves or laid on uneven terrain, will retain significant amounts of water even after opening drain valves. Always use the air blowout method for comprehensive protection.
• Mistake: Exceeding recommended air pressure. Instead: Stick to 50 PSI for PVC and 80 PSI for polyethylene. Use a pressure regulator on your compressor and monitor the gauge constantly. More pressure equals more damage risk, not better water removal.
• Mistake: Blowing out a single zone for too long. Instead: Once you see a fine mist and no more significant water spray, move to the next zone. Running air through a dry system for extended periods can overheat and damage plastic components and seals within the sprinkler heads and valves.
• Mistake: Closing the backflow test cocks or valves after draining. Instead: Leave the test cocks on the backflow preventer open and the main handles set at 45-degree angles (if applicable) throughout winter. This prevents any residual water from being trapped and freezing.
• Mistake: Forgetting to open the furthest zone first. Instead: Always start with the zone furthest from your compressor connection. This method pushes water through the longest path, ensuring the most efficient and thorough removal before tackling shorter, closer zones.
• Mistake: Not wearing eye protection. Instead: Always wear ANSI-approved safety glasses. Compressed air can propel debris or water unexpectedly, especially from stubborn sprinkler heads, posing a significant risk to your eyes.

Cost & Time Breakdown

Tips & Prevention

• Timing is Key: Aim to winterize your system a few weeks before the first hard freeze (when temperatures consistently drop below 28°F). Don't wait until the last minute.
• Monitor Weather Forecasts: Keep an eye on extended forecasts. If an unexpected early freeze is predicted, prioritize your sprinkler system.
• Compressor CFM: When renting or buying, prioritize compressors with higher CFM (cubic feet per minute) at 40-50 PSI. A minimum of 5-8 CFM is generally recommended for residential systems to ensure thorough water removal in a reasonable time.
• Label Your Zones: Clearly label all zones on your irrigation controller and map them to your yard for easy identification during the blowout process.
• Annual Backflow Inspection: While winterizing, inspect your backflow preventer for any signs of leaks, cracks, or corrosion. These devices often require annual testing by a certified technician in many municipalities.
• Sprinkler Head Check: Before winterizing, run your system briefly to identify any broken or leaking sprinkler heads. Repairing these in the fall can prevent more significant freeze damage if water were to collect there.

When to Call a Professional

While a DIY blowout is feasible for many, certain situations warrant calling a licensed irrigation professional. If your system lacks a dedicated blow-out port, attempting to adapt a connection can be difficult and risky, potentially damaging pipes or the compressor. Very large or complex systems with many zones, long runs, or significant elevation changes can be challenging to clear completely with a homeowner-grade compressor, increasing the risk of missed water. If you are uncomfortable working with compressed air, or if you consistently struggle to get all the water out, a professional ensures a thorough job. Additionally, some municipalities require backflow prevention devices to be tested annually by a certified technician, and many homeowners prefer to have this service combined with their winterization. A pro can guarantee compliance and proper function of this critical safety device. Finally, if you've already experienced freeze damage in the past despite your DIY efforts, it may be a sign that a professional's expertise is needed to prevent future costly repairs. They have specialized, high-volume compressors and expertise to handle any system configuration.
