Quick Answer

Most common sprinkler spray pattern problems, like uneven coverage or spraying the street, can be fixed by correctly adjusting the nozzle's arc and radius, clearing obstructions, or cleaning clogged filter screens. Typically, you'll need a small flathead screwdriver or the manufacturer's special adjustment tool to make precise changes. These adjustments ensure your lawn receives optimal hydration while preventing wasteful overspray onto sidewalks and driveways, ultimately saving water and money.

The Problem

Is your sprinkler drenching the driveway while leaving patches of your lawn parched? Are you noticing brown spots despite regular watering, or perhaps green streaks of algae on your patio where the sprinkler repeatedly overshoots? An improperly adjusted sprinkler spray pattern doesn't just waste water; it leads to an unhealthy lawn, can damage hardscapes, and even contribute to higher water bills. Over-watering certain areas fosters fungal growth and nutrient runoff, while under-watered spots turn brittle and brown. Many homeowners simply "set and forget" their sprinkler heads, unaware that changes in water pressure, landscape growth, or even minor shifts in the sprinkler head itself can throw the carefully calibrated spray pattern completely off. Identifying the specific issue – whether it's an arc that's too wide, a radius that's too long, a clogged nozzle, or a physical obstruction – is the first step to restoring efficient and effective irrigation.

How It Works

Modern residential sprinkler heads, particularly the pop-up rotor and spray varieties, are engineered to distribute water in a precise pattern. Understanding their basic mechanics helps in diagnosing and fixing issues.

Spray Heads: These typically have a fixed or adjustable nozzle that creates a consistent fan of water. Fixed nozzles spray a specific pattern (e.g., quarter-circle, half-circle), while adjustable nozzles allow you to manually set the arc from 0 to 360 degrees. Water enters the head, travels through an internal screen (filter) to catch debris, and is then forced through the nozzle's orifice. The shape and size of this orifice, along with internal vanes, dictate the spray pattern. Water pressure plays a significant role; too low, and the spray will be weak and uneven; too high, and it can mist or atomize, leading to excessive evaporation and poor coverage.

Rotor Heads: These operate differently. Water pressure causes a built-in turbine or gear drive mechanism to rotate the nozzle slowly, distributing water over a larger radius. Rotor heads are popular for larger lawn areas because they deliver water more slowly and consistently, reducing runoff. They typically have two main adjustments: the arc (the sweep angle of rotation, usually adjustable from 40 to 360 degrees) and the radius (how far the water sprays). The radius is often adjusted by a screw that protrudes into the water stream, breaking it up and shortening the throw. Like spray heads, they also have internal filters. The internal gears are sensitive to debris, which can impede rotation and uniformity.

Both types of heads rely on a consistent flow and pressure from your irrigation system. When debris, wear and tear, or external factors interfere with these mechanisms, the intended spray pattern gets disrupted.

Step-by-Step Fix

Always proceed with caution when working with your irrigation system. Ensure the system is turned off before making any physical adjustments or cleaning to prevent accidental activation and injury.

1. Identify the Problem Head – Locate the misbehaving sprinkler

   • Turn on your irrigation system for just a minute or two during daylight hours. Observe each sprinkler head closely. Is it spraying too far, not far enough, or in the wrong direction? Note specific issues for each head. This diagnostic step is crucial for targeted repairs.
   • Tools for observation: Your eyes and perhaps a notepad.

2. Clean Around the Head – Clear obstructions for a full spray

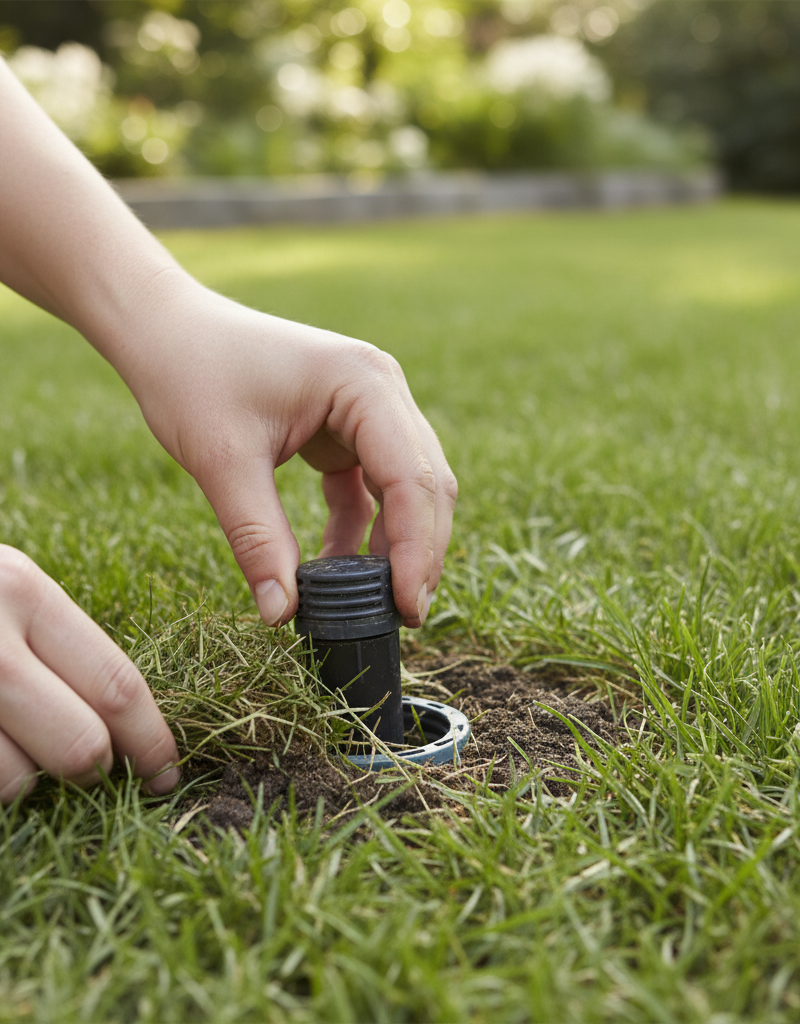

   • Once you've identified a problematic head, turn off the water to that zone or the entire system. Gently clear away any grass, dirt, or mulch that might be obstructing the sprinkler's pop-up mechanism or its spray path. Overgrown grass or debris can significantly alter the spray pattern.
   • Tools: Trowel, gloves.

3. Check for Clogs (Nozzle & Filter) – Restore full water flow

   • For spray heads, unscrew the nozzle by hand (counter-clockwise) or with a flathead screwdriver. For rotor heads, carefully pull up the riser (the part that pops up) and unscrew the nozzle. Some rotor nozzles require a special wrench, often provided by the manufacturer.
   • Inspect the nozzle for visible debris like grit, mineral deposits, or grass clippings. Use a small wire or a nozzle cleaning tool to poke through the orifice. Rinse it thoroughly under running water.
   • While the nozzle is off, pull out the small filter screen located at the base of the riser. Rinse this screen under running water to remove any accumulated sediment. A toothbrush can be useful for scrubbing away stubborn deposits.
   • Reinsert the clean filter screen and reattach the nozzle, making sure it's snug but not overtightened.
   • Safety: Wear safety glasses, especially if using compressed air for cleaning, to protect against flying debris.

4. Adjust the Arc (Spray & Rotor Heads) – Define the spray coverage area

   • Turn the water back on to the zone. For spray heads with adjustable nozzles, grip the top of the nozzle and rotate it to define the desired spray pattern (e.g., quarter-circle, half-circle). Some have a small screw on top that adjusts the arc. Consult your sprinkler's manual for specific instructions.
   • For rotor heads, most brands have a specific method. Often, you'll find an adjustment slot marked with a '+' or '-' on the top of the head. Use the manufacturer's adjustment tool (or a small flathead screwdriver) to turn this screw. Turning it clockwise typically increases the arc, and counter-clockwise decreases it. The stationary side of the arc is often fixed, and you adjust the rotating side. Ensure the stationary side is pointed where you want the spray to begin.
   • If this doesn't work: The internal mechanism might be stripped or damaged. Consider replacing the sprinkler head.

5. Adjust the Radius (Spray & Rotor Heads) – Control the spray distance

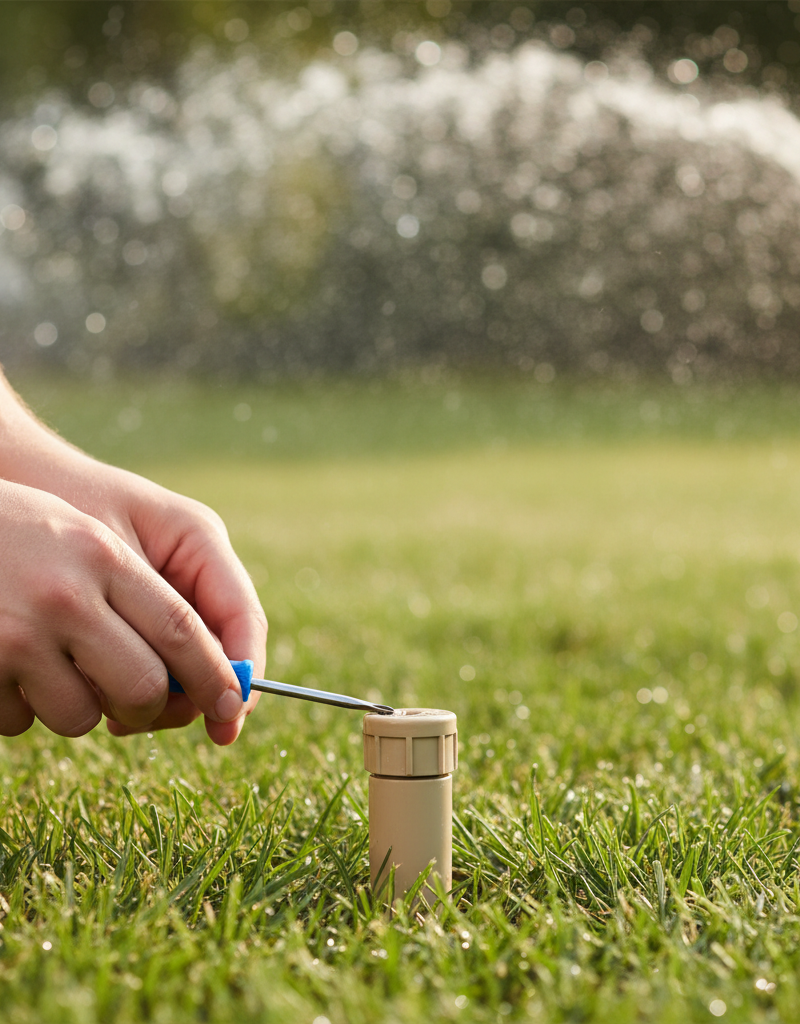

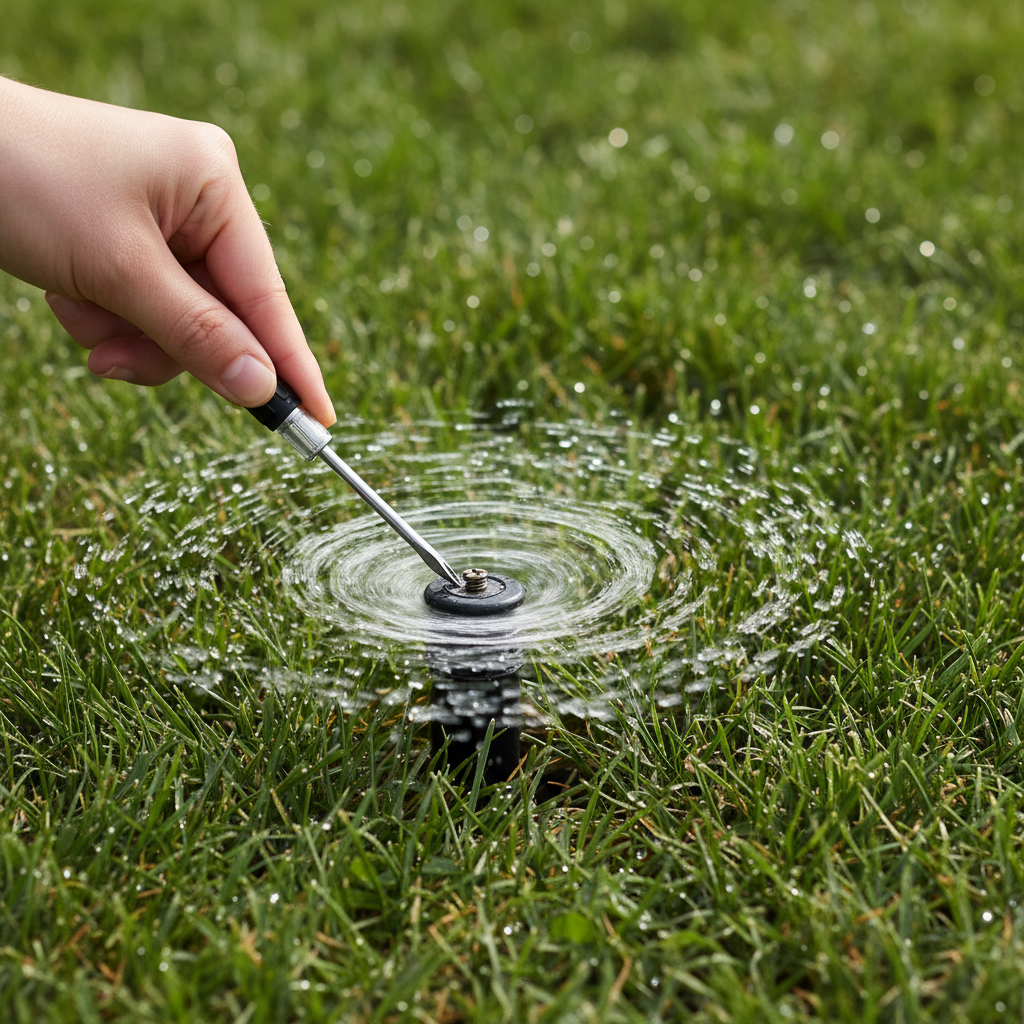

   • Spray heads: Look for a larger screw, typically in the center of the nozzle. Turning this screw clockwise with a flathead screwdriver will restrict the flow and shorten the spray distance (radius). Turning it counter-clockwise will increase the distance. Don't restrict flow too much, as this can create misting and uneven coverage. Aim for droplets, not mist.

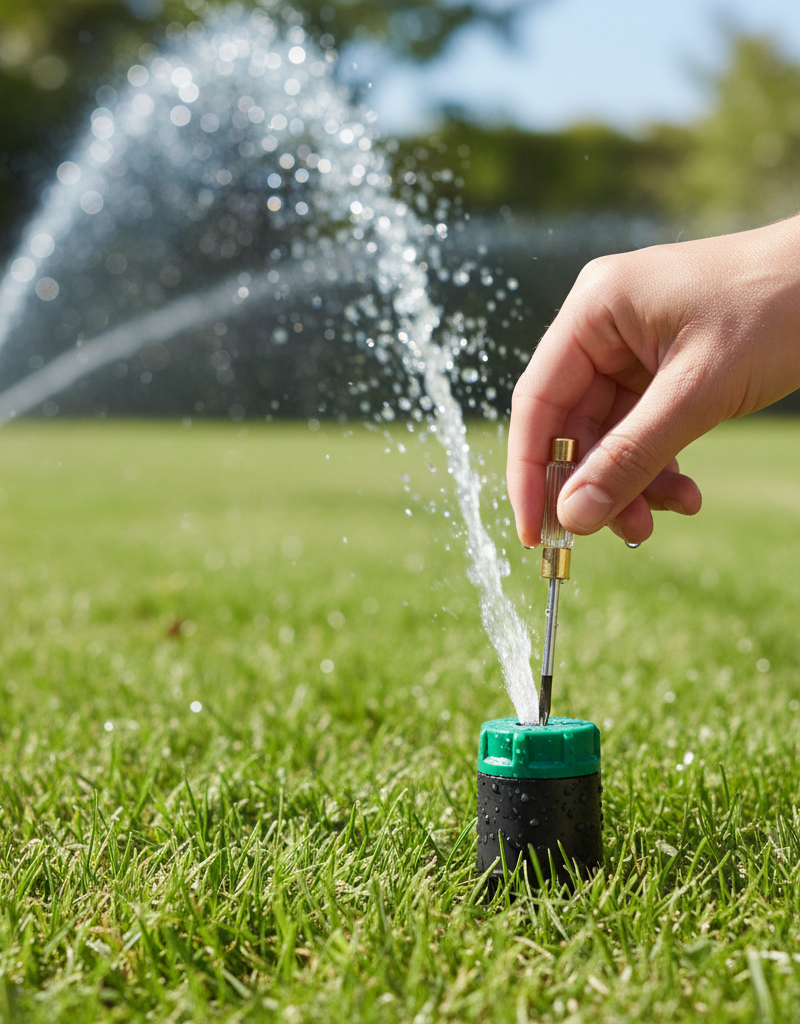

   • Rotor heads: There's usually a similar radius adjustment screw on top of the head. Turning it clockwise with a flathead screwdriver or the adjustment tool will push a pin into the water stream, breaking it up and reducing the radius. Turning it counter-clockwise will allow more water to pass, increasing the radius. Adjust incrementally and observe the effect.
   • Important: Try to achieve head-to-head coverage where each sprinkler sprays to the next, ensuring uniform watering.

6. Orient the Pop-Up Riser – Direct the spray exactly where needed

   • For both spray and rotor heads, if the entire pop-up riser is turned in the wrong direction, you need to reorient it. With the water off and the riser in the down position, carefully pull up the pop-up stem by hand. Most risers can be rotated slightly (within a certain range) without tools. Point the fixed side of the arc (if applicable) or the general direction of spray towards the area you want it to water. If it feels too stiff to turn by hand, or if you need to turn it significantly, you might need to dig up the head slightly and adjust the pipe connection beneath it. Be careful not to break the pipe.
   • If rigid: Contact a professional if you cannot safely rotate the head or if it seems to be cross-threaded or stuck.

7. Check for Leaks and Damage – Ensure system integrity

   • While adjusting, look for any visible leaks around the base of the sprinkler head when the system is on. Cracks in the head casing or worn seals can cause significant water loss and affect pressure, leading to poor spray patterns. If you find cracks or significant leaks, the head likely needs replacement.
   • Safety: Never put your hand directly over a spraying head to feel for leaks; instead, observe water pooling or spraying from unexpected locations.

8. Fine-Tune and Observe – Achieve optimal coverage

   • After making adjustments, run the zone for several minutes. Walk around and observe the coverage. Look for dry spots, areas of overspray, and ensure the water droplets are falling evenly. It may take several iterations of adjustment to get it just right. Consider performing a
