Quick Answer

Adjusting a sprinkler spray pattern is a straightforward task that can significantly improve your lawn's health and reduce water waste. Most adjustments involve either turning the nozzle by hand to change the direction and arc, or using a small flat-head screwdriver or a specialized adjustment tool to modify the spray distance. Understanding your specific sprinkler head type (fixed spray, rotor, or rotating nozzle) is key, as each has a slightly different adjustment method, but the entire process rarely takes more than a few minutes per head.

The Problem

Many homeowners set their sprinkler systems once and forget them. However, landscaping changes, plant growth, or even minor bumps from lawnmowers can shift sprinkler heads out of alignment. This leads to common issues like dry spots in the lawn, soggy areas next to sidewalks, or, most commonly, water being sprayed onto impervious surfaces like driveways, patios, and fences. Not only is this a significant waste of water—and money on your utility bill—but it can also lead to unhealthy turf, weed growth in over-watered areas, or even damaged hardscaping from constant moisture, salt, and mineral deposits. A misaligned sprinkler is a silent drain on your resources and a detriment to your landscape's health.

How It Works

Sprinkler systems, at their core, are designed to distribute water evenly across a designated area. The 'magic' behind this distribution lies in the sprinkler head itself. There are three main types homeowners encounter: fixed spray heads, rotor heads, and rotating nozzles.

Fixed spray heads are the simplest. Water enters the base, travels up a riser, and is forced through a small, patterned orifice (the nozzle) at the top. This orifice has no moving parts and creates a consistent fan, rectangle, or half-circle pattern. Adjustments for these heads are usually limited to replacing the nozzle with one that has a different pattern or a slightly different throw distance. The direction of the spray is typically set by rotating the entire riser once it's pulled up or by moving the nozzle itself on the riser. Their pressure range is usually 20-30 PSI.

Rotor heads are more complex and are designed for larger areas, typically spraying water in a single stream that sweeps back and forth. Inside a rotor head, water pressure drives a small turbine, which in turn rotates a geared mechanism. This mechanism allows the nozzle to oscillate or 'throw' water in an adjustable arc from 40 to 360 degrees. The distance of the spray is often controlled by a set screw that partially obstructs the water flow, breaking up the stream into smaller droplets, or by interchangeable nozzles with different flow rates. Arc adjustments are made using a specialized tool or a flat-head screwdriver to turn internal cams that define the start and stop points of the rotation. Rotors operate best at higher pressures, typically 30-60 PSI.

Rotating nozzles (sometimes called rotary nozzles) combine aspects of both. They look like fixed spray heads but have multiple small streams of water that rotate independently, delivering water at a slower, more even rate than fixed sprays. Internally, a small gear-driven mechanism spins the multiple water streams. They are generally more water-efficient than fixed sprayer heads. Adjustments typically involve twisting a collar to change the arc or pulling up the riser and rotating the entire nozzle assembly to adjust the direction. Some models also have a distance adjustment screw. Their optimal pressure range is usually 20-50 PSI.

All three types rely on water pressure and carefully engineered nozzle designs to achieve their spray patterns. When pressure is too low, the spray turns into a weak drizzle; too high, and it creates a fine mist that's easily carried away by wind. Proper adjustment ensures the water lands precisely where it's needed, maximizing efficiency and minimizing waste.

Step-by-Step Fix

Safety First

— Always be aware of your surroundings when adjusting sprinklers. Avoid spraying water directly into electrical outlets, air conditioning units, or other sensitive equipment. Wear eye protection, especially when working with higher pressure systems, to prevent accidental splashes from irritating your eyes.

1. Identify Your Sprinkler Head Type

— Before you begin, determine whether you have fixed spray heads, rotor heads, or rotating nozzles. This will dictate the adjustment method. Fixed heads often have a broad fan or curtain of water, rotors shoot a single stream that sweeps, and rotating nozzles have multiple slow-moving streams.

2. Turn On the Zone

— Activate the specific irrigation zone containing the sprinkler heads you want to adjust. It's best to do this during daylight hours so you can clearly see the spray pattern and identify areas of over- or under-watering. You'll need the system running to make precise adjustments.

3. Adjust Fixed Spray Heads

— For fixed spray heads, the primary adjustments are direction and sometimes distance.

• Direction: Gently grasp the top of the pop-up riser and rotate it to direct the spray where needed. If it's stiff, try slowly twisting it back and forth to loosen it. Some models allow you to rotate the nozzle itself.

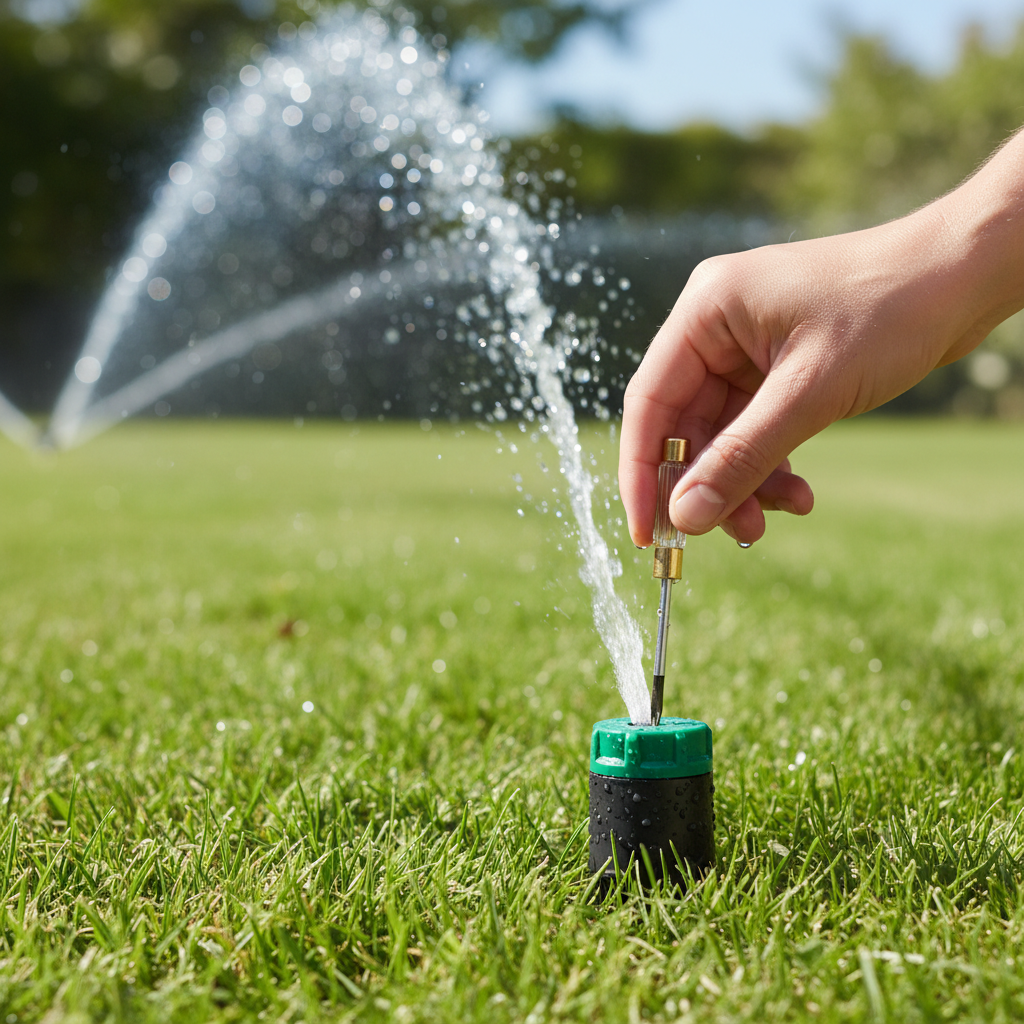

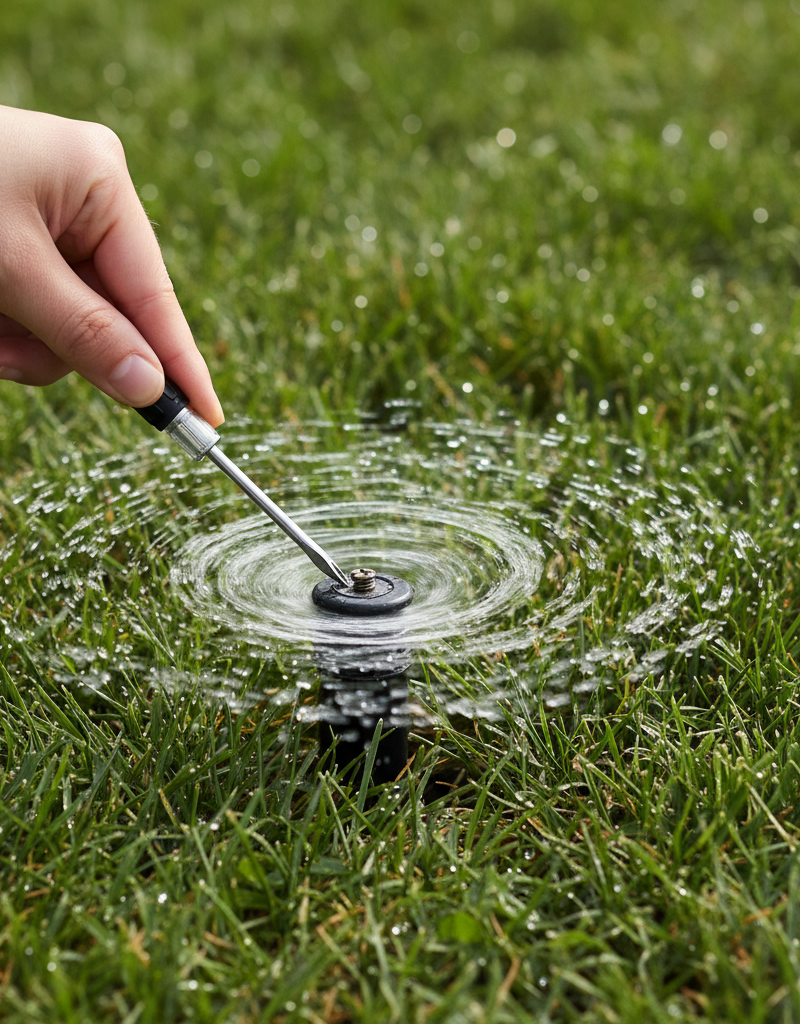

• Distance (limited): Some fixed spray nozzles have a small adjustment screw on top. Turning this screw clockwise will typically reduce the spray distance by deflecting the water stream. Turning it counter-clockwise will increase it. Be careful not to unscrew it completely, as this can cause the nozzle to pop off under pressure.

4. Adjust Rotor Heads

— Rotor heads typically require a specialized key or a small flat-head screwdriver for adjustment. Look for two main adjustment points: arc and distance.

• Arc/Pattern: Locate the arc adjustment slot (often marked with a plus/minus sign or an arrow) on the top of the rotor head. Insert your tool and turn it to increase or decrease the arc. Some rotors have a fixed right stop, and you only adjust the left stop. Others allow you to set both the left and right stop by hand (by turning the top of the riser) after adjusting the arc. Test the full rotation to ensure it covers the desired area without overspraying.
• Distance/Radius: Find the radius adjustment screw (often a slotted screw near the nozzle). Turning this screw clockwise with your tool will drive a pin into the water stream, breaking it up and reducing the spray distance. Turning it counter-clockwise will remove the pin, increasing the distance. Do this carefully as too much can cause misting.

5. Adjust Rotating Nozzles

— These nozzles often have a simpler adjustment mechanism.

• Arc/Pattern: Many rotating nozzles can be adjusted by grasping the top collar and twisting it to widen or narrow the arc. On other models, you might lift the pop-up riser and rotate it to adjust the overall direction.
• Distance/Radius: Some rotating nozzles have a small screw, similar to fixed spray heads, for minor distance adjustments. Turning it clockwise reduces the distance. Others require swapping out the entire nozzle for one with a different throw range.

6. Fine-Tune and Observe

— Once initial adjustments are made, let the system run for a few minutes. Carefully observe the spray pattern. Are there still dry spots? Is water hitting paved areas? Repeat steps as necessary, making small, incremental adjustments until you achieve optimal coverage. Pay attention to head-to-head coverage, where one sprinkler's spray reaches the next sprinkler's location.

7. Check for Leaks and Obstructions

— While you're adjusting, quickly look for any visible leaks around the base of the sprinkler head. Also, ensure no grass, debris, or plant growth is obstructing the spray pattern. Trim back any foliage that might interfere with the water distribution.

8. Consider Pressure Issues

— If, after adjusting, you still have extremely poor coverage or excessive misting, you might have a water pressure issue. Low pressure results in short, weak sprays, while high pressure causes misting and uneven distribution. This might require a pressure regulator or professional irrigation assessment. This is beyond simple sprinkler adjustment and may indicate a larger system problem.

Common Causes

• Growth of Landscape: As shrubs, trees, or even tall grass mature, they can block the spray pattern of sprinkler heads, leading to dry spots.
• Physical Damage/Impact: Lawn mowers, edgers, or even foot traffic can accidentally bump or crack sprinkler heads, causing them to shift direction or spray incorrectly.
• Sediment Buildup: Over time, minerals and debris from your water supply can accumulate in the nozzle, altering the spray pattern or clogging it entirely.
• Changing Water Pressure: Fluctuations in municipal water pressure or changes within your home's plumbing can affect the distance and pattern of your sprinklers.
• Wear and Tear: Gaskets, springs, and gears inside older sprinkler heads can degrade, leading to improper pop-up, rotation, or sealing.
• Improper Initial Installation: Sometimes, sprinkler heads were simply installed incorrectly from the start, requiring adjustment to achieve optimal coverage.

Common Mistakes

• Adjusting While Dry: Trying to adjust a sprinkler head when the system is off. You need to see the water spray to make accurate adjustments.
• Forgetting Head-to-Head Coverage: Only focusing on getting water to one spot, rather than ensuring the spray from one head reaches the next head for even coverage.
• Over-tightening/Over-loosening Screws: Forcefully turning adjustment screws can strip them or damage the internal mechanisms, especially the radius screw which can pop out if fully unscrewed.
• Ignoring Misting: Misting usually indicates excessively high water pressure, leading to significant water loss due to evaporation and wind drift. Don't just adjust the distance; consider a pressure reducing solution.
• Not Cleaning Nozzles: Assuming a poor pattern is always an adjustment issue, when it could simply be a clogged nozzle that needs a quick cleaning or replacement.
• Using the Wrong Tool: Using pliers or vice grips to turn a stiff riser or a screwdriver that doesn't fit the adjustment slot. This can strip plastic components or break delicate internal parts.

Cost & Time Breakdown

Tips & Prevention

• Regular Observation: Periodically walk your yard while the sprinklers are running to identify any misaligned heads or coverage issues. A quick check monthly during the watering season can save water and improve lawn health.
• Clean Nozzles Annually: Before the primary watering season, remove and clean sprinkler nozzles. Use a small brush or needle to clear any debris. This prevents clogs and maintains optimal spray patterns.
• Mark Sprinkler Heads: If your sprinkler heads are hard to spot in tall grass, consider using flags or spray paint to mark their locations. This helps prevent accidental damage from lawnmowers or other equipment.
• Consider Pressure Regulation: If you consistently observe misting (high pressure) or very short, weak sprays (low pressure), consider installing a pressure regulator for your irrigation zone. This ensures uniform water delivery.
• Prune Carefully: Trim back shrubs and plants near sprinkler heads annually to ensure they don't obstruct the spray pattern as they grow.
• Store Adjustment Tools Safely: Keep your sprinkler adjustment tools (like specific rotor keys or a dedicated flat-head screwdriver) in an easily accessible place with your gardening supplies so they are always handy.

When to Call a Professional

While most sprinkler adjustments are well within the grasp of a DIY homeowner, there are specific situations where calling a licensed irrigation professional is the wisest choice. If you've adjusted a head multiple times and still can't achieve proper coverage, or if you notice significant issues like consistently low water pressure across multiple zones, constant leaks at the base of heads, or a zone that fails to turn on entirely, a professional can diagnose underlying system problems. Similarly, if you suspect a broken pipe underground or an issue with your main irrigation valve or controller that seems beyond a simple fix, don't hesitate to call. They have the expertise and specialized tools to efficiently identify and repair complex issues, ensuring your system runs optimally and preventing further damage or water waste.
