Quick Answer

Adjusting your sprinkler's spray pattern is a straightforward task that can significantly improve your lawn's health and reduce water waste. The process usually involves identifying the correct adjustment points on your sprinkler head—often a collar for arc adjustment and a screw for distance. With a flathead screwdriver and a patient approach, you can fine-tune your system to deliver water precisely where it's needed, preventing brown spots, wasteful runoff, and overwatering.

The Problem

Have you ever noticed dry patches in your lawn despite running your sprinklers regularly? Or perhaps the opposite: puddles forming, water spraying onto your driveway, or even drenching your neighbor's fence? These are all tell-tale signs that your sprinkler spray patterns are out of sync. An improperly adjusted sprinkler system leads to uneven watering, which can manifest as an unhealthy, patchy lawn, increased water bills due to wasted water, and even damage to surrounding structures or landscaping from overspray. The problem isn't just aesthetic; it impacts the efficiency of your entire irrigation system and your landscape's long-term health. Many homeowners make a critical mistake by simply increasing run times when they see dry spots, further exacerbating water waste without addressing the root cause: poor spray pattern adjustment.

How It Works

Most residential sprinkler heads, whether pop-up or stationary, operate on similar principles to distribute water. Water pressure from your main line pushes water through the sprinkler body to the nozzle, which is designed to atomize and direct the water stream. The 'spray pattern' is a result of the nozzle's design and any subsequent adjustments.

There are generally two main types of adjustments homeowners will encounter: arc and distance. The arc refers to the degree of rotation the sprinkler head covers, ranging from a small quarter-circle (90 degrees) to a full circle (360 degrees). This is typically controlled by an adjustment collar or a series of stops within the sprinkler head mechanism. As the water pressure rotates the head (in the case of rotor heads) or pushes water through a static nozzle, these internal stops dictate the start and end points of the spray.

Distance, or radius, is governed by the flow rate and the trajectory of the water exiting the nozzle. Many adjustable nozzles feature a diffuser screw—a small screw located on the top or front of the nozzle. When this screw is turned clockwise, it pushes a small pin or tab into the water stream. This disrupts the stream, breaking up the water particles and effectively shortening the spray distance. Turning it counter-clockwise retracts the pin, allowing for a longer throw. Some newer, more advanced heads might have interchangeable nozzles or even internal adjustments for distance that don't involve a diffuser screw, but the basic principle of controlling the water stream's integrity remains the same. Understanding these two primary adjustment mechanisms—arc to define the coverage area and distance to control how far the water reaches—is key to optimizing your irrigation system for peak performance and water conservation.

Step-by-Step Fix

Here’s how to troubleshoot and adjust your sprinkler spray patterns for optimal coverage.

1. Identify the Sprinkler Head Type – Different heads, different adjustments. Before you begin, determine whether you have spray heads (which emit a continuous, fan-shaped spray) or rotor heads (which rotate to cover a larger area with a single stream). This will dictate the adjustment method.

   • Spray heads: Often have a fixed arc or adjustable nozzles for arc and distance.
   • Rotor heads: Typically have separate adjustments for arc and radius (distance).

2. Turn On the Zone – Observe the current pattern. Activate the irrigation zone containing the sprinkler head you want to adjust. Let it run for a minute or two to clearly see its current spray pattern, identify dry spots, and note any overspray or areas of concern. This baseline observation is crucial.

3. Adjust the Arc (Rotor Heads) – Define the watering area. For rotor heads, the arc is usually adjusted first. This can vary by manufacturer:

   • Most common: Hold the nozzle assembly stationary (usually by grasping the riser stem) and rotate the top collar or ring. Look for indicator arrows or a scale showing the degree of arc (e.g., 90°, 180°, 360°). Increase or decrease the arc until it precisely covers your intended area, avoiding sidewalks or fences. Some require a special key (provided by the manufacturer) or a flathead screwdriver inserted into a specific slot to rotate the arc.
   • Hunter rotors: Often have a 'set right stop' feature. Rotate the entire riser assembly until the right edge of the spray is at the desired fixed point. Then, adjust the arc clockwise or counter-clockwise using a flathead screwdriver in the designated slot on top of the head.
   • Rain Bird rotors: Typically use a flathead screwdriver to turn a screw in the '+' or '-' direction on the top of the head to increase or decrease the arc.
   • Safety Note: Be careful not to force adjustments. If it feels stuck, consult your sprinkler head's manual.

4. Adjust the Arc (Spray Heads with Adjustable Nozzles) – Set your spray angle. Many modern spray heads use adjustable nozzles that twist to change the arc.

   • Method: With the water running (or briefly turned off if it's too wet to see), grasp the outer ring of the nozzle. Rotate it clockwise or counter-clockwise to broaden or narrow the spray pattern's arc. Some nozzles have detents that click into place at specific angles (e.g., 45°, 90°, 180°). Ensure the arc aligns perfectly with the landscape edge you want to water.
   • If it doesn't twist: Your spray head likely has a fixed-arc nozzle. If the arc is wrong, you'll need to replace the nozzle with one that has the correct arc (e.g., 90-degree, 180-degree). These are inexpensive and twist on and off easily after removing the riser from the housing.

5. Adjust the Distance/Radius (Both Head Types) – Fine-tune your reach. This adjustment almost universally involves a diffuser screw located on the top-center of the nozzle.

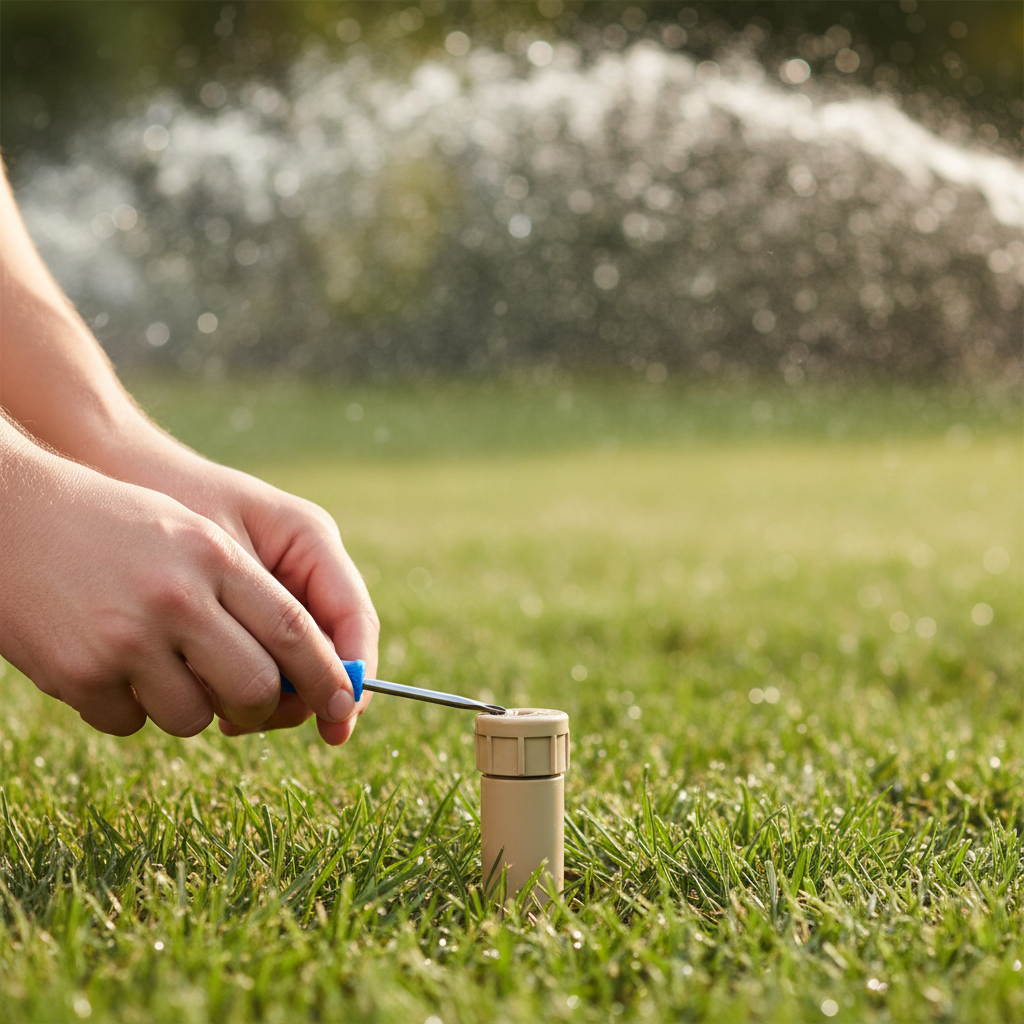

   • Method: Use a small flathead screwdriver to turn the screw clockwise to decrease the watering distance, thereby scattering the water closer to the head. Turn it counter-clockwise to increase the distance. Make small quarter-turn adjustments, then observe the spray. Continue adjusting until the water reaches the edge of the intended area without overspray.
   • Reasoning: The screw obstructs a portion of the water stream, breaking it up and reducing its throw distance. For heads with interchangeable nozzles, the specific nozzle rating also heavily influences distance; consider a different GPM (gallons per minute) nozzle if you need a dramatic change in distance.

6. Adjust the Trajectory/Angle (Some Rotor Heads) – Lift or lower the spray. Some high-end rotor heads allow you to adjust the trajectory of the water stream. This is less common but useful for watering under low-hanging branches or over obstacles.

   • Method: Look for a separate small slot or dial on the top of the rotor head, often marked with an arrow indicating
